LUTRON SL-4012 SOUND LEVEL METER Original

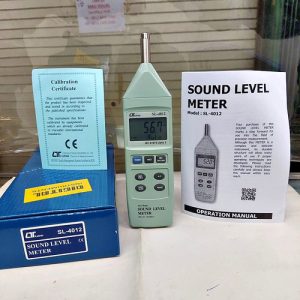

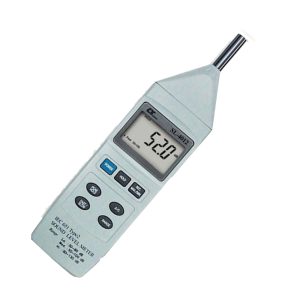

LUTRON SL-4012 SOUND LEVEL METER
Lutron Sound Level Meter (SL-4012) adalah Kualitas yang menjadi satu-satunya perhatian, kami menawarkan berbagai macam Sound Meter yang dikenal dengan atributnya yang tiada tara. Seluruh rangkaian produk kami tersedia dalam spesifikasi berbeda. Kami memiliki tim audit kualitas internal yang menguji seluruh rangkaian produk berdasarkan parameter tertentu, sehingga memastikan ketahanan dan keandalannya. Seluruh rangkaian produk kami dikonfigurasikan dengan teknologi canggih.
sound level meter digital tipe Class 2 yang dirancang untuk mengukur tingkat kebisingan secara akurat pada berbagai aplikasi industri, lingkungan, dan keselamatan kerja (K3). Alat ini mendukung fitur Auto Range serta konektivitas ke komputer.
FITUR Lutron SL-4012
- Hasil Akurat.
- Suara Performa Sempurna.
- canggih secara teknis.
- Tingkat Suara yang mudah dioperasikan.
SPESIFIKASI Lutron SL-4012
| Name | Details |
|---|---|
| Model | SL-4012 |
| Brand | Lutron |
| Origin | Taiwan |
| Measurement Range | 30 – 130 dB |
| Resolution | 0,1 dB |
| Frequency | 31.5 to 8,000 Hz |
| Accuracy | (23 ± 5˚C) |
| Display | 52 mm x 32 mm LCD 5 digits (Liquid Crystal Display) |
| Calibrator | B & K (Bruel & Kjaer), Multi-Fuction Acoustic Calibrator |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Operating Humidity | < 80% RH; |
| Power Supply | 006P DC 9V battery ( Alkaline or heavy duty type ), Power |
| Consumption | Approx. DC 6mA |
| Output Signal | AC output – AC 0.5 Vrms corresponding to each range step, Output impedance – 600 ohm, RS232 |
| Output Terminal | Terminal 1 : RS232 computer interface terminal, Terminal 2 : AC output terminal |
| Range Selector | Auto Range 30 to 130 dB |
| Manual Range | 3 range, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB, 50 dB on each step, with over & under range indicating |
| Terminal Socket Size | 3.5 mm dia. phone socket |
| Function | dB (A & C frequency weighting), Time weighting (Fast, Slow), Hold, Memory (Max. & Min.), Max. hold, AC output, RS232 output |
| Microphone Type | Electric Condenser Microphone |
| Microphone Size | Out size, 12.7 mm DIA. (0.5 inch) |
| Weighting Network | Characteristics of A & C |
| Weighting Network | Characteristics of A & C |
| Time weighting (Fast & Slow) | Fast: t=200 ms, Slow: t=500 ms |
| Time weighting (Fast & Slow) | Fast: t=200 ms, Slow: t=500 ms “Fast” range is simulated the human ear response time “Slow” range is easy to get the avg. values of vibration sound levelThe “Fast” & “Slow” response range are designed to meet IEC 651 type 2 requirement |
| Calibration VR | Build in external calibration VR, easy to calibrate on 94 dB level by screw driver |
| Power Consumption | approx. DC 6 mA |
| Dimension | 268 x 68 x 29 mm (10,6 x 2,7 x 1,1 inch) |
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
