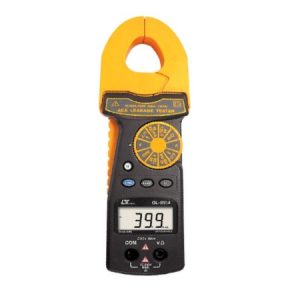

LUTRON DL-9954 AC Ampere Leakage Tester
LUTRON DL-9954 AC Ampere Leakage Tester
CV. MITRA LASER menjual LUTRON DL-9954 AC Ampere Leakage Tester dengan harga murah dan ekonomis. Untuk info pemesanan silahkanhubungi kami di Tlp/Wa : 085353410506

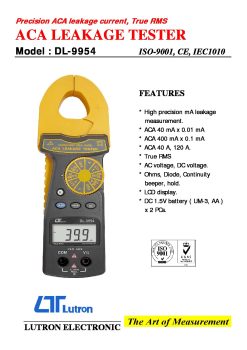

Precision ACA leakage current, True RMS LUTRON DL-9954 Made in Taiwan
* High precision mA leakage measurement.
* ACA 40 mA x 0.01 mA
* ACA 400 mA x 0.1 mA
* ACA 40 A, 120 A.
* True RMS
* AC voltage, DC voltage.
* Ohms, Diode, Continuity beeper, hold.
* LCD display.
* High precision AC mA measurement, it is useful for AC mA leakage current measurement.
* Measure AC mA on the inductive conductor.
* Design meet IEC 1010 CATIII 600V safety requirement.
* 4000 counts, auto range and multi-functions.
* Measurement for ACA, ACV, DCV, Ohms, Diode, Continuity beeper.
* True RMS measuring reading for ACV and ACA function.
* Two AC leakage current range : 40 mA, 400 mA .
* Two AC current range : 40 A, 120 A.
*Dimension HWD : 191 x 64.5 x 36.1 mm
*Max. Jaw 22.3 mm ( 0.88 inch ) Dia Open Size
Function Range Resolution - Accuracy Overload Protection
DCV 400 mV DC only 0.1 mV ± ( 0.5 % + 2d )
ACV 4 V 0.001V DCV :
( true rms ) 40 V 0.01V ± ( 1 % + 2d )
400 V 0.1 V ACV : AC/DC 600V
600 V 1 V ± ( 1.2 % + 5d )
ACA Leakage ( true rms ) 40 mA 0.01mA ± ( 1.5 % + 3d ), 400 mA 0.1mA
0.1 to 400 mA
AC A True RMS
0 to 39.99 A 0.01 A
40 to 100 A 0.1 A ± ( 1.5 % + 3d )
100.0 A to 120 A, 0.1A, ± ( 3 % + 3d )
Function Range Reso- Accuracy Overload
lution Protection
Ohms 400 ohm 0.1 ohm
4 K ohm 1 ohm
40 K ohm 10 ohm ± ( 1 % + 5d )
400 K ohm100 ohm
4 M ohm 1 K ohm ± ( 2 % + 2d ) AC / DC 400 V
40 M ohm 10Kohm ± ( 3.5 % + 5d )
Diode Short/non conductance, good/defect test.
Continuity If measuring resistance is less than 10 ohm,
the beeper will sound .
Accessories Included
Operation manual
Test lead (red & black) 1 PC.
Battery AA = 2 Pcs
