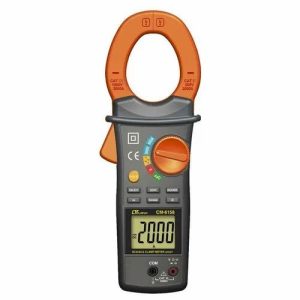

Lutron CM-6158 Clamp Meter 2000 A AC/DC
Jual Lutron CM-6158 Clamp Meter 2000 A AC/DC
DCA/ACA CLAMP METER
Lutron CM-6158 adalah instrumen tang ampere digital (digital clamp meter) profesional buatan Taiwan yang dirancang untuk mengukur arus listrik besar AC dan DC hingga 2000A dengan akurasi tinggi. Alat ukur ini dilengkapi dengan sistem operasi "Smart" pintar yang secara otomatis mendeteksi parameter pengukuran listrik.
Model : CM-6158
- V : Smart ACV/DCV Automatically.
- Resistance, Diode, Continuity, Capacitance. Automatically.
- 600A : Smart DCA/ACA.
- 2000A : Smart DCA/ACA.
- Function keys : Select, Zero, Hz, Max/Min, Range, Hold.
- CAT III 1000V, CAT IV 600V.
- Max. hold (Max., Min. measuring value).
- 48 mm measuring conductor size.
- Auto power off.
DC Current, AC Current
Range 600A/1000A
Resolution 0.1A /1A
Accuracy 600 A Range ± ( 2% +5d )
2000 A Range ± ( 2% +8d )
Over load AC/DC 1000A protection
AC Voltage
Range
6 V/60 V/600 V/1000 V
Resolution
0.001V /0.01V /0.1V/1 V Accuracy ± ( 1% + 2d )
DC Voltage
Range
600 mV /6 V/60 V/600 V /1000 V
Resolution 0.1 mV/0.001 V/0.01 V/0.1 V/1 V
Accuracy
±( 0.8% + 2d ) 600 mV±
( 0.8% + 1d ) 6 V, 60 V, 600 V, 1000 V
Diode
Short/non conductance, good/defect test
Capacitance :
Range 6 nF/60 nF/600 nF/6 uF/60 uF/600 uF
Resolution 0.001nF/0.01nF/0.1 nF/0.001uF/0.01uF/0.1uF
Accuracy ± ( 3 % + 5d )
Overload protection ± 30 DCV, 30 ACV.
Discharge capacitor before testing.
Frequency
Range 40Hz to 1KHz
Resolution 0.001kHz
Accuracy ± ( 0.5% + 2d )
Over load Protection ± 1000 DCV, 1000 ACV.
OHMS ( auto range )
Range 600/6 K/60 K/600 K/6 M/60M Resolution0.1Ω
/0.001K/0.01K/0.1K/0.001M/0.01M
Accuracy 600 ohm : ± ( 1 % + 2d )
6K/60K/600K/6M/60M : ± ( 1.5 % + 2d )
Continuity Beeper
Beeper will sound if measured resistance less than 20 ohm.
Max. & Min. Measurement
During the operation can memorize the maximum and the minimum measurement value.
Accessories Included ( Termasuk dalam alat )
Red and Black Test Leads 1 Set
Instruction Manual
Soft carrying case
Batere kotak 9 Volt
