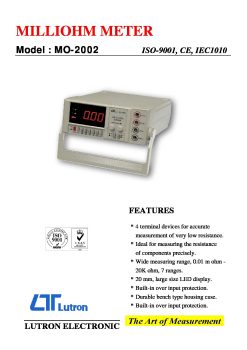

Lutron MO-2002 MilliOHm Meter Bench
Lutron MO-2002 MilliOHm Meter Bench
Made in Taiwan
Lutron MO-2002 MilliOHm Meter Bench adalah alat ukur resistansi rendah tipe meja (bench-type milliohm meter) profesional yang dirancang untuk mengukur komponen listrik dengan tingkat kepresisian tinggi menggunakan metode pengukuran 4-wire Kelvin. Alat ini sangat ideal untuk pengujian komponen elektronik, konduktor pelindung, penangkal petir, serta titik pengelasan atau sambungan kabel.
Lutron MO-2002 MilliOHm Meter
Used for measurement work such as components precisely
4 Terminal devices for accurate measurement of very low resistance
- 7 resistance measurement ranges
- 20 mΩ/ 200 mΩ/ 2 Ω/ 20 Ω/ 200 Ω/ 2 KΩ/ 20 KΩ
- Can set up the warning system Warning LED Indicator and Buzzer
Large LCD screen, convenient to read values.
Machine size 280 x 210 x 90 mm. (2.2 Kg)
Standard equipment: Power Cord x1, 4 wire with 2 clips x1,
brand Lutron, Taiwan.
Features Lutron MO-2002 MilliOHm Meter :
- 4 terminal devices for accurate measurement of very low resistance.
- Ideal for measuring the resistance of components precisely.
- Ideal for testing protective conductors, lightning conductors and welded points.
- Wide measuring range, 0.01 m ohm – 20K ohm, 7 ranges.
- 20 mm, large size LED display, easy read-out.
- LSI circuit provides high accuracy, reliability and durability.
- Built-in over input protection.
- Durable bench type housing plastic case stand.
- Built-in over input protection.
Specification Lutron MO-2002 MilliOHm Meter :
| Test Range (Test Current) |
20 m ohm ( 1 A DC ) 200 m ohm ( 1 A DC ) 2 ohm ( 100 mA DC ) 20 ohm ( 10 mA DC ) 200 ohm ( 1 mA DC ) 2 K ohm ( 100 uA DC ) 20 K ohm ( 10 uA DC ) |
| Warning Setup | • Warning LED Indicator • Buzzer |
| Operating Temp. | 0 to 50 ℃ ( 32 to 122 ℉ ). |
| Operating Humidity | Less than 80 % R.H.. |
| Power Supply | • AC 110V ± 15%, 50/60 Hz • or AC 230V ± 15%, 50/60 Hz. |
| Fuse for Power Supply | • 200 mA/250 V |
| • Size : 5 X 20 mm dia.. | |
| Dimension | • 280 x 210 x 90 mm • ( 11.0 x 8.3 x 3.5 inch) |
| Weight | Approx. 2.2 Kg ( 4.85 LB ). |
Standard Accessories
• Power Cord…1 PC.
• 4 wire with 2 Kelvin clips…1 pair.
• Instruction Manual…1 PC
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
