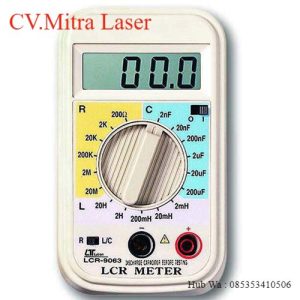

LUTRON LCR-9063 Digital LCR Meter
Jual LUTRON LCR-9063 Digital LCR Meter
* A pocket, Battery operated, Inductance, Capacitance and Resistance Meter.
* LSI-circuit provides high reliability and durability.
* LCD display for clear readout even in bright ambient
* Ilight conditions.
* Rotary switch function selector .
* Color-coded panel for easy indentification of functions and ranges .
* Low battery indicator.
A. Inductance
Range In-range Display Resolution- Test Frequency- Accuracy
* 2 mH 0.02 mH-2 mH 1 uH 250 Hz ± (3 % + 3 d)
20 mH 2 mH-20 mH 10 uH 250 Hz
200 mH 20 mH-200 mH 100 uH 250 Hz
2 H 0.2 H-2 H 1 mH 250 Hz ± (5 % + 5 d)
20 H 2 H-20 H 10 mH 250 Hz
B. Capacitance
Range In-range Display Resolution- Test Frequency- Accuracy
* 2 nF 10 pF-2 nF 1 pF 250 Hz
20 nF 200 pF-20 nF 10 pF 250 Hz
200 nF 2 nF - 200 nF 100 pF 250 Hz ± (3 % + 3 d)
2 uF .02 uF - 2 uF 1 nF 250 Hz
20 uF 0.2 uF - 20 uF 10 nF 250 Hz
200 uF 2 uF - 200 uf 100 nF 250 Hz
C. Resistance
200 ohm Resolution 0.1 ohm
2 k Resolution 1 ohm
20 k Resolution 10 ohm
Open Circuit Voltage 600 mV
Accuracy ± ( 2 % + 3 d )
200 k, 100 ohm
2000 k , 1 k
20 M , 10 k
Open Circuit Voltage Approx. 300 mV
Accuracy ± ( 2 % + 3 d )
Accessories Included ( Termasuk )
Instruction Manual
Included Test alligator clips
Batere kotak 9 volt
.Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
