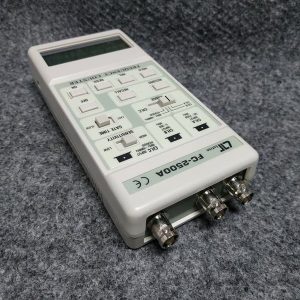

LUTRON FC-2500A 2.5 GHz FREQUENCY COUNTER Original
Jual LUTRON FC-2500A 2.5 GHz FREQUENCY COUNTER Original 100%
Model : FC-2500A
* 3 ranges, 2500 MHz, 100 MHz, 10 MHz.
* Frequency, Period, Hold, Relative, Max., Min., Average, 8 digits LCD.
* High sensitivity for VHF & UHF frequency.
* Size : 173 x 80 x 35 mm, Portable type.
* High sensitivity for the VHF & UHF
frequency measurement, useful for the CB amateur.
* Handheld & pocket size instrument.
* Wide measuring range up to 2.6 GHz.
* Good resolution, 0.1 Hz min. display unit for 10 MHz range.
* Used the exclusive Microprocessor IC offered the intelligent function: Frequency, Period, Multi resolution, Data hold, Relative measurement, Data record( Max., Min., Average reading).
* Auto power off & manual power off.
* LCD display for low power consumption & clear read-out even in bright ambient light condition.
Table for Resolution & Sample Time
Range
2500 MHz
Gate Time Resolution Sampling Time
FAST 1000 Hz 0.5 SEC
SLOW 100 Hz 2.75 SEC
SLOW(select 1) 200 Hz 1.5 SEC
SLOW(select 2) 500 Hz 0.75 SEC
500 Mhz
Gate Time Resolution Sampling Time
FAST 100 Hz 0.75 SEC
SLOW 10 Hz 6 SEC
SLOW(select 1) 20 Hz 5 SEC
SLOW(select 2) 50 Hz 1.5 SEC
10 MHz
Gate Time Resolution Sampling Time
FAST 10 Hz 0.5 SEC
SLOW 1 Hz 1.25 SEC
SLOW(select 1) 0.2 Hz 6 SEC
SLOW(select 2) 0.1 Hz 11 SEC
Standard Accessories ( Termasuk dalam paket produk )
* Instruction Manual 1 PC.
Optional Accessories
* Battery DC 9 V
* AT-20 ....Telescoping RF pick-up antenna with BNC connector.
* PB-21 ....Direct probe with BNC connector & alligator clip pairs.
(Be used only for the measuring frequency 500 MHz)
* CA-03 ....Soft carrying case.
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
