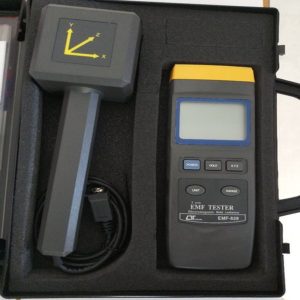

LUTRON EMF-828 3D EMF TESTER
LUTRON EMF-828 3D EMF TESTER
LUTRON EMF-828 3D EMF TESTER adalah alat penguji medan elektromagnetik (EMF tester) original buatan Lutron yang dirancang khusus untuk mengukur radiasi frekuensi rendah pada tiga sumbu sekaligus (X, Y, Z) secara akurat.
dirancang untuk memberikan cara yang cepat, andal, dan mudah bagi pengguna dalam mengukur tingkat radiasi medan elektromagnetik di sekitar saluran listrik, peralatan listrik, dan perangkat industri. Alat uji EMF ini merupakan instrumen portabel yang ekonomis, yang dirancang dan dikalibrasi untuk mengukur radiasi medan elektromagnetik pada rentang lebar mulai dari 30 Hz hingga 300 Hz.
Aplikasi: Alat uji EMF ini dirancang untuk mendeteksi radiasi yang dihasilkan oleh monitor komputer, pesawat televisi, saluran listrik, peralatan video, dan perangkat sejenis lainnya.
Features Lutron EMF-828 3D EMF Tester
- Three axis ( X, Y, Z direction ) electromagnetic field measurement
- The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices
- Wide measuring ranges, 3 ranges of 20 micro Tesla, 200 micro Tesla & 2000 micro Tesla
- The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at wide bandwidths from 30 Hz to 300 Hz
- LCD display, jumbo digit size
- Data hold
- Separate probe, easy operation
- DC 9V battery power supply
- Hard case included
Specifications Lutron EMF-828 3D EMF Tester
- Range / Resolution:
º micro Tesla :
20 micro Tesla/0.01 micro Tesla
200 micro Tesla/0.1 micro Tesla
2000 micro Tesla/1 micro Tesla
º mili-Gauss :
200 mili-Gauss/0.1 mili-Gauss
2,000 mili-Gauss/1 mili-Gauss
20,000 mili-Gauss/10 mili-Gauss - Number of Axis:
º Three axis ( X, Y, Z direction ).
º Axis selected by push button. - Band width Accuracy: 30 Hz to 300 Hz.
º ± (4 % + 3 d)
@ 20 micro Tesla range
@ 200 mili-Gauss range
º ± (5 % + 3 d)
@ 200 micro Tesla range
@ 2,000 mili-Gauss range
º ± (10 % + 5 d)
@ 2,000 micro Tesla range
@ 20,000 mili-Gauss range
* Spec. accuracy tested under 50 Hz or 60 Hz.
* Spec. tested under the environment RF Field Strength less than 3 V/M & frequency less than the 30 MHz only. - Display:
LCD, 3 1/2 digits.
LCD size : 55 mm x 47 mm
Max. indication 1999 counts
With display units. - Over-input: Display shows ” 1 “
- Sampling Time: Approx. 0.4 second
- Battery: DC 9 V battery (006P, 6F22)
- Power Current: Approx. DC 2.7 mA
- Operating Temp.: 0 to 50 ℃ ( 32 to 122 ℉)
- Operating Humidity: Less than 85 %RH
- Weight: 460 g/1.01 LB (including battery). @ Including Probe and battery
- Dimension:
º Main meter : 195 x 68 x 30 mm ( 7.6 x 2.6 x 1.2 inch )
º Probe : 70 x 58 x 220 mm ( 2.8 x 2.3 x 8.7 inch ). @ Sensor probe head : 75 x 58 mm - Probe Cable Length: 930 mm
Caution Of Electromagnetic Field Exposure
Claims by some scientists that long term exposure to electromagnetic field may be the cause of childhood
leukemia & other forms of cancer.
Complete answers to any of these and related questions are not currently available. At the present time the
most common practice is to avoid excess exposure over long period of time.
“Prudent Avoidance” as stated by the Environmental Protection Agency(EPA) USA is recommended.
Accessories Included:
- Operation Manual……………………. 1 PC
- Carrying case…………………………. 1 PC
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
