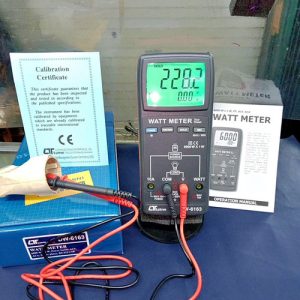

LUTRON DW-6163 WATT METER

LUTRON DW-6163 WATT METER adalah instrumen pengukur daya digital (watt meter) fase tunggal (single-phase) portabel yang dirancang untuk mengukur konsumsi energi listrik secara presisi. Berdasarkan data teknis resmi dari produsen, alat ini mampu mengukur daya aktif (True Power) hingga 6000 Watt dengan resolusi 1 Watt.

Features Lutron DW-6163 Watt Meter :

Professional precision WATT meter with 1 W resolution digital display , battery operated
LSI – circuit provides high reliability and durability
Directly operation
Measurement :
– WATT ( AC ) : 6000W x 1W
– ACV : 600V x 0.1 V
– ACA : 10 A x 10 m A
– PF : 1.00 x 0.01
True Power and Wide range 0 W to 6000 Watt
True RMS measurement of ACV / ACA
Super large LCD , Dual display at same time
Full function Auto range
Memory Record ( Max. , Min. ) , Data Hold
RS232 / USB Computer interface
Built-in low battery indicator
Built – in backlight easy to readout
Power : DC 9V ( 006P ) or AC to DC 9V adapter in

Specifications Lutron DW-6163 Watt Meter :

Circuit: Custom one-chip of microprocessor LSI circuit
Display:
– Large LCD display max. reading 9999
– Digit size : 21.8 x 8.5 mm
– Dual value display with backlight
Measurement Unit:
– ACV: 0 to 600.0 V
– ACA: 0.01 to 10.00 A
– WATT: 0 to 6000 W
– PF: 0.01 to 1.00
Over input: ” —- ” mark indication
Zero: Automatic adjustment
Sampling Time: Approx. 1 second
Data Hold: Freeze the display reading
Memory Recall: Maximum & Minimum value
Data output: RS232 / USB PC Computer interface
Operation Temperature: 0℃ to 50℃ ( 32℉ to 122℉ )
Operation Humidity: Less than 80% RH
Power Supply: Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent
Power Consumption: Approx. DC 10 mA
Weight: 398 g/0.88 LB
Dimension: 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch )
