Total Station SANDING ARC-5 PRO

Kategori: Total Station | Dilihat: 10 Kali
Harga: Rp 34.000.000
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Kode Produk: SANDING ARC-5 PRO Stok Tersedia - 09-02-2024
Detail Produk

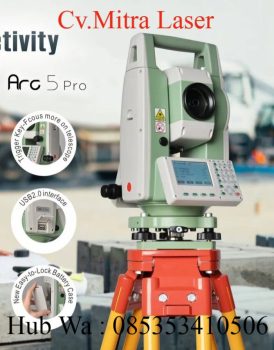

Total Station SANDING ARC-5 PRO Reflectorless

Kini hadir Total Station SANDING ARC-5 PRO dengan harga murah ekonomis dan bergaransi. Dengan tingkat akurasi 2 detik dan reflectorless membuat pekerjaan anda lebih cepat dan akurat.

Features :

Trigger key to take measure at any time
USB flashdrive connection supportable
Reflectorless range to 1000m
Dual axis compensator
Upgraded laser path diagram
Abundant surveying programs

Specifications :
TELESCOPE
Tube Length 154mm
Objective Lens Diameter Telescope: 45mm; EDM: 50mm
Magnification 30X
Image Erect
Field of View 1°30'
Resolving Power 3"
Min. Focus 1.0m
DISTANCE MEASUREMENT
Single Prism 5000m
Non-Prism 1000m
Accuracy -Prism Mode ±2mm+2ppm

Non-Prism Mode

<500m:±2mm+2ppm
>500m: ±3mm+2ppm
Measuring time fine: 1s; tracking: 0.5s
Atmospheric Correction T-P Sensor, Auto Detect and Correct
Prism Constant Manual Input, Auto Correction
ANGLE MEASUREMENT
Method Absolute Encoding
Detecting System H: 2 sides V: 2 sides
Min Reading 0.5"/1"/5"10" selectable
Accuracy 2"
Diameter of Circle 79mm
Vertical Angle 0° Zenith: 0°/Horizontal:0°
Unit 360°/400gon/6400mil
DISPLAY
Size 3.5"; 320*240 Dot Matrix
No.of Display 2 Color Screens
Keyboard Alphanumeric
TILT CORRECTION
Tilt Sensor Dual Axis
Method Liquid Electric
Range ±3′
Setting Unit 1"
LEVEL SENSITIVITY
Plate Level 30"/2mm
circular vial 10'/2mm
OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET)
Image Erect
Magnification 3X
Focusing Range 0.3m ~ ∞
Field of View
DATA STORAGE INTERFACE
Storage Internal Memory: 1GB ; Max.SD card:32GB
Data Interface SD-card/Mini USB/RS232C
GENERAL
Laser Class *5 -EDM Class IIIA
-Laser Plummet Class II
Working Temperature -20°C~ + 50°C
Battery Type Rechargeable Lithium Battery
Battery Voltage DC 7.4V
Working Time 8h
Water & Dust Proof IP55
