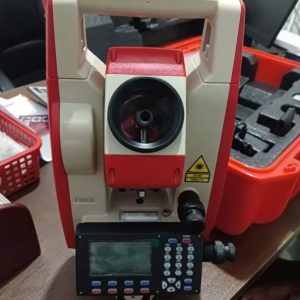

Total Station Kolida KTS-442UT

Kategori: Alat Survey,Total Station | Dilihat: 95 Kali
Harga: -
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Kode Produk: Kolida KTS-442UT Stok Tersedia - 30-03-2024
Detail Produk

Total Station Kolida KTS-442UT Tangerang Harga Terbaik

Total Station Kolida KTS-442UT adalah Total Station yang Berkualitas tinggi dengan harga Ekonomis dengan tingkat akurasi 2 detik. Di desain ringkas yang sempurna untuk aplikasi pengukuran dan penentuan posisi sehari-hari seperti topo, tata letak konstruksi, dan pengumpulan bukti forensik.

Specification Total Station Kolida KTS-442UT :

Measuring Range
1P : 5.0km
3P : 8-10km
Non prism : 1000m (1500m optional)
Digital Display : Maximum: 99999999.9999 Minimum: 0.1mm
Accuracy : With prism: 2mm+2ppm, without prism 3mm+2ppm
Measuring Time : Tracking 0.1s, Fine 0.3s (optimal)
Atmospheric Correction : Automatic Correction by Inputting Parameter
Prism Constant : Automatic Correction by Inputting Parameter

Angle Measurement
Measurement Method : Absolute Encoding
Diameter of The Raster Disk : 79mm
Minimum Reading : 1"/ 5" Optional
Accuracy : 2″
Detection Method : Horizontal: Four Sensors Vertical: Four Sensors
Telescope
Image : Erect
Length : 154mm
Effective Aperture : 45mm (DTM 50mm)
Magnification : 30x
Field of View : 1″ 30′
Resolving Power : 3″
Minimum Focus : 1m
Compensation
System : Dual axis liquid-electric
Working Range : ± 3′
Resolving Power : 1″

Sensitivity of Vials
Plate Vial : 30″/2mm
Circular Vial : 8′ /2mm
Laser Plummet : Yes

Data Storage and Communication
Internal Memory : 12MB (up to 100,000 points)
External Memory : USB Flash Disk (up to 256 GB)
Communication Port : USB, Bluetooth

Display
Type : Dual sides, 6 lines, black and white

Battery
Power Supply : Rechargeable battery (3100mAH)
Voltage : 7.4V DC
Operation Time : 10 hours

Dimension and Weight
Dimension : 160mm×150mm×330mm
Weight : 5.7 kg

Environmental Specification
Dust/Water (IEC60529) :IP66
Working Temperature Range : -20°C~50°C
Humidity : 95%, non-condensing
