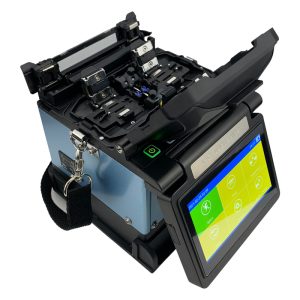

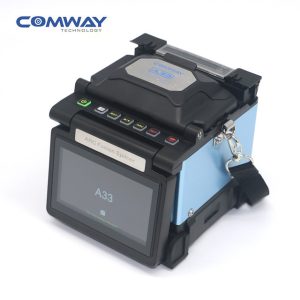

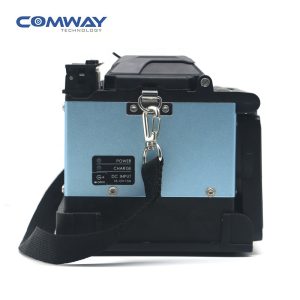

Fusion Splicer COMWAY A33
Fusion Splicer COMWAY A33 Original
Fusion Splicer COMWAY A33 Dibuat di AS Chip GPU Terintegrasi Penyelarasan Inti Presisi Tinggi Bobot Ringan Sangat Cepat Kinerja Stabil Rugi Rendah Tahan Debu, Tahan Air, Tahan Angin, Anti Guncangan Penyambungan Sangat Cepat 5 Detik Super Heater 15 Detik 4000mAh Baterai Kapasitas Tinggi 280 Sambungan & Panas Debit ARC Kalibrasi Otomatis USB Kecepatan Tinggi Loker jarak jauh Anti-pencurian 4.3 'Layar Sentuh Warna Terang Tinggi Elektroda 5000 ARC Discharge High Precision Cleaver C108
Fusion Splicer COMWAY A33
Fitur:
- Integrated GPU chip
- 4.3 Inch Touch Screen
- 5 sec. Splicing
- 15 sec. Heating
- Remote Locker Anti-theft
- ID Electrodes 5000 cores
Specifications COMWAY A33 :
| Size & Weight | D 136 x W 141 x H 136 (mm), 1.5kg (1.8kg with battery) |
| Fiber Alignment | High Precision PAS Alignment |
| Fiber Type | SM (ITU-T G.652), MM (ITU-TG.651), DS (ITU-TG.653), NZ/NZDS (ITU-TG.655), BI (ITU-TGG.657) |
| Splice Mode | Single fiber |
| Fiber Diameter | Cladding 80 – 150µm, Coating 100 – 1000µm |
| Cleave Length | 250µ cladding diameter 8 – 16mm, over 250µm cladding diameter 16mm |
| Splicing Programs | Max. 100 |
| Splicing Time | 5 sec. [SM Fast] program, 15 sec. [SM G652] program |
| Heating Programs | Max. 30 |
| Heating Time | Typical 15 sec. (Adjustable) |
| Splice Protector | 10 – 60mm |
| Splice Image Capture | Max. 300, Automatic Cycle Storage |
| Splice Data Storage | Max. 20000 |
| Splice Loss | SM : 0.02dB, MM : 0.01dB, DS : 0.04dB, NZ/NZS : 0.04dB, BI : 0.02dB |
| Return Loss | >>60dB |
| Loss Estimation | Provided |
| Operation Condition | Altitude 0 – 5000m, Humidity 0 – 95%, Temperature -20 – +50°C, Wind Velocity up to 15m/s |
| Storage Condition | Humidity 0 – 95%, Temperature -40 – +80°C, (Battery -20 – +40°) |
| Tension | 2N |
| Fiber View | 4.3 inch high-light color touch screen |
| Fiber Magnification | 300x for X or Y single axis view, 500x for both X & Y dual axis view (zoom up) |
| Port | High speed USB |
| Electrode Life | 5000 ARC discharges |
| Power Supply | AC 100 – 240V, 50/60Hz |
| Battery Capacity | 4000 mAh High capacity battery, more than 240 times splicing & heating |
Fusion Splicer COMWAY A33

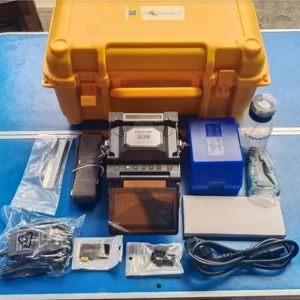

Package:
1 Fusion splicer A33
2 Quick start guide
3 Stripper
4 Drop cable stripper
5 High precision cleaver
6 Carrying case
7 High capacity baterai
8 AC adapter
9 Spare electrod
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
