Signal Fire Ai-9 Fusion Splicer

Kategori: Fusion Splicer | Dilihat: 103 Kali
Harga: Rp 14.500.000
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Kode Produk: Signal Fire Ai-9 Stok Tersedia - 08-12-2023
Detail Produk

Signal Fire Ai-9 Fusion Splicer Fiber Optik Tangerang Harga Terbaik

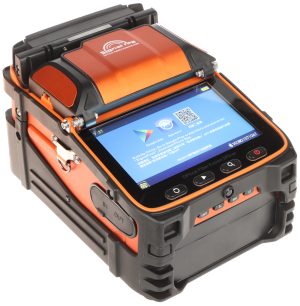

Signal Fire AI-9 is the latest model from the line of optical fiber splicers, which have been successfully used in fiber optic installations of various categories for several years. Thanks to the fine-tuning of the software and an even better optimization of the splicing process, the entire process has been shortened to just 5 seconds. However, the most important feature of the new model is built in optical power meter module and visual fault locator . This allows for quick diagnostics of the optical path immediately after making a splice.

Signal Fire is a proven solution in the market of fiber-optic fusion splicers. Despite of advanced fiber positioning and splicing technique, the device is offered for a very competitive price. The working comfort will be appreciated by both beginner and advanced users, including experienced installers. The quality and reliability of the splicing machine has been confirmed in a number of tests performed under a variety of environmental conditions and on different types of fibers.

Signal Fire is a dynamically developing company specializing in the manufacture of fiber optic splicers. Headquartered in Chengdu, it employs nearly 200 professionals. The devices are built with top-of-the-line components from renown manufacturers (including European ones), and based on technological solutions protected by numerous patents. The characteristic feature of splicing machines from Signal Fire is the use of smartphones for their configuration, archiving of operation data and for diagnostics. Products of this company have gained recognition in the markets of the whole world. The high quality of the offered devices is confirmed by the warranty policy providing a replacement after 50,000 splices.

Signal Fire AI-9 employs core alignment technology (there is option of cladding alignment) that ensures minimum attenuation of the splices. Fiber ends are positioned by 6 stepper motors from Siemens, which is an absolute exception in this price category. The splicer can be used both for deployment of hundred-kilometer-long fiber optic trunks and in FTTH systems requiring short point-to-point connections, in LAN installations and fiber-based video surveillance systems. The AI-9 model is controlled by a quad-core processor providing fast response times (the splicer is ready to work after 3 seconds) and ensuring short splicing and sleeve heating operations. The splicer is one of the fastest devices of its kind currently available on the market and the fastest in its price class.

5.1-inch screen with resolution of 800×480 pixels and adjustable brightness makes the operation simple and intuitive, even in difficult lighting conditions. The optical system offers magnification factor of 300, making it very easy to observe the splicing operations and visual analysis of the results (in two planes). The minimum splicing time is 5 seconds, and sleeve heating time (40 mm sleeves) is only 15 seconds. The included USB adapter allows to charge the smartphone or connect USB lamp powered from the USB port when working in the dark (no lamp included).

The universal fiber holders ensure comfort and speed of operations – they can hold 250 μm or 900 μm SM, MM fibers in tight buffer or loose tubes, pigtails, rubber-insulated fibers, multi fiber and DROP cables. The splicing machine offers various programs and Auto mode that works well in most situations.

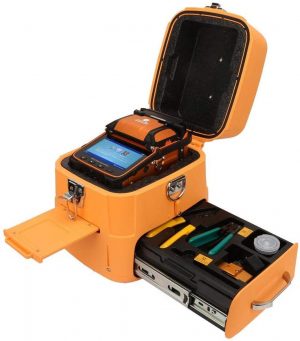

The housing body is made of metal , underneath covered with rubber protection. The splicing chamber and heater cover are made of high quality plastics. The kit includes a practical box containing all the necessary tools, power supply and accessories (placed in two-level drawer mounted on durable metal guides). What is important, the installer does not have to take the splicer out of the box for splicing operations – the box provides a solid and stable support. The box is made of durable plastic and has a detachable element that can be used as a stool or small table.

The device is equipped with 7800 mAh rechargeable battery which has enough energy to perform 240 splices with sleeve heating cycles. The battery charging time is only 3.5 h. “Press & remove” design of the battery compartment allows for very fast battery change (there is a possibility to buy a spare battery). Additionally, the AI-8 splicer is equipped with a USB connector for charging a smartphone in the field from this high-capacity battery.

The splicer software allows the owner to enable a so-called “intelligent lock”. In this mode, the owner has the possibility to limit the use of the splicer – for example when renting it. The following restrictions can be made:

  • the splicer is locked by default; it is necessary to unlock using a pre-defined phone,
  • the splicer is unlocked to perform a certain number of splices – after that it will remain blocked,
  • the splicer is unlocked for a specified time (user defines a range of dates); after that, the splicer will remain blocked.

Key features

  • 6 motors for fiber positioning,
  • core alignment or cladding alignment options,
  • AUTO mode option,
  • x300 magnification factor,
  • quad-core processor providing fast response times,
  • splicing time from 5 seconds,
  • quick sleeve heating period (15 s for 40 mm sleeve),
  • configuration with dedicated smartphone app (Android/iOS),
  • the app can create operation reports (export to xls),
  • large (5.1”) display with adjustable brightness,
  • metal casing underneath covered with rubber layer,
  • high-capacity exchangeable battery (7800 mAh, ca. 200 splicing and heating operations),
  • battery charging time: ca 3.5 h,
  • USB adapter for smartphone charging,
  • universal fiber holders,
  • high quality practical toolbox,
  • large set of accessories.

Jual Signal Fire Ai-9 Fusion Splicer Fiber Optik dengan harga murah hanya di CV.MITRA LASER dan tentunya dengan barang 100% Original.
Pemesanan Signal Fire Ai-9 Fusion Splicer Fiber Optik bisa di kirim ke seluruh Indonesia dengan system pembayaran Untuk Luar Kota ( Jakarta ) Transfer. Khusus untuk Wilayah Jakarta Pembayaran bisa COD ( Cash On Delivery )
Untuk info harga terbaik silahkan hubungi : 081398390838 / 08112348415 ( WA : 08112348415 )
Bila membutuhkan Penawaran Harga silahkan di email ke : mitralaserstore@gmail.com
