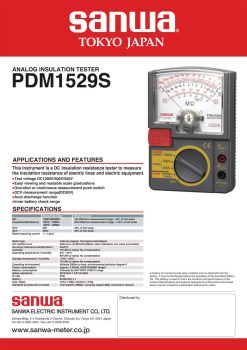

SANWA PDM1529S ANALOG INSULATION TESTER
SANWA PDM1529S ANALOG INSULATION TESTER

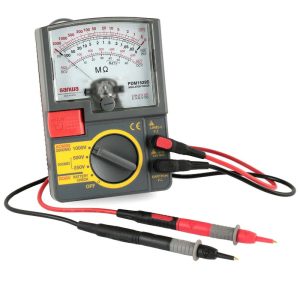

SANWA PDM1529S adalah alat uji isolasi listrik (insulation resistance tester atau megger) tipe analog portabel yang dirancang untuk mengukur nilai hambatan isolasi pada jalur kelistrikan maupun peralatan elektronik. Alat ini menggunakan sistem analog 3-range dengan skala ukur yang disederhanakan agar mudah dibaca dengan akurat.
APPLICATIONS AND FEATURES
This instrument is a DC insulation resistance tester to measure the insulation resistance of electric lines and electric equipment.
Test voltage DC1000V/500V/250V
Easy viewing and readable scale graduations
One-shot or continuous measurement push switch
DCV measurement range(DC60V)
Auto discharge function
Inner battery check range
SPECIFICATIONS :
- Meter type: Internal magnet, Taut-band meter(48μA)
- AC rectifier form: Half-wave rectification(Mean value indication rms value converted)
- Accuracy assurance temperature /humidity: 23±5°C 75%RH or below No condensation
- Operating temperature / humidity: 0°C～43°C 80%RH or below No condensation
- Storage temperature / humidity: -10°C～50°C 70%RH or below No condensation
- Operating environment: Altitude 2000m or less, environmental pollution degree II
- Power consumption: Approx. 2.6W(At 1000V/2000MΩ range)
- Battery consumption: Checked by BATTERY CHECK range
- Safety standards: IEC61010-1 CAT.III 600V
- IP rate: IP20
EACH UNIT INCLUDES WITH :
1. Test lead(TL-508Sa)
2. Carrying case(C-08S)
3. Instruction manual
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
