SANWA PC710 DIGITAL MULTIMETER Original

Kategori: SANWA | Dilihat: 443 Kali

Harga: Rp 3.000.000

Beli

Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Whatsapp SMS Telp

Kode Produk: SANWA PC710 Stok Tersedia - 14-08-2026

Detail Produk

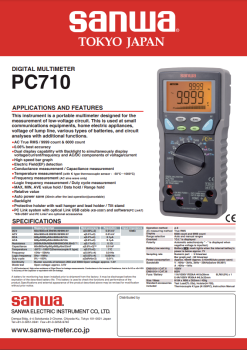

SANWA PC710 DIGITAL MULTIMETER

SANWA PC710 DIGITAL MULTIMETER adalah alat ukur premium berakurasi tinggi (0,06%) yang dirancang khusus untuk keperluan analisis sirkuit elektronik tingkat lanjut serta kelistrikan arus lemah. Multimeter ini dilengkapi dengan fitur PC Link yang memungkinkan Anda mentransfer hasil pengukuran langsung ke komputer untuk analisis data yang lebih mendalam menggunakan perangkat lunak Sanwa PCLink7.

Features Sanwa PC710 Digital Multimeter

4 digits 9999 count & 3-5/6 digits 6000 count
Dual Display shows voltage/current and its frequency, and AC components and DC components of voltage/current
AC True RMS
EF(Electric Field) Detection to indicate signal strength of electric field which surrounds current-carrying conductors
Capture (peak hold) 1ms in duration
MAX, MIN, AVE recording mode
K type temperature -50℃〜1000℃
– Optional accessory K-AD is necessary
– K type temp. sensor K-250PC is included as a standard accessory
Frequency measurement (AC sine wave only)
Logic frequency measurement, duty cycle measurement
Conductance measurement
Dual display with backlight
Data hold, Range hold
Relative value
Auto power saving mode (30min.) (cancelable)
Optical Link USB interface (optional)
Display : numeral display 9999 & 6000, bar graph 41 segments
Sampling rate : 5 times/sec., 60 times/sec. for bar graph
Max.EN61326-1:2006
Battery life : Approx. 60h (manganese battery) at DCV range

Specifications Sanwa PC710 Digital Multimeter

PC710	Measuring range	Best accuracy	Resolusion	Input impedance
DCV	60m/600m/9.999/99.99/999.9V	±(0.06%+2)	0.01mV	10MΩ
ACV	60m/600m/9.999/99.99/999.9V	±(0.5%+3)	0.01mV	10MΩ
DCA	600μ/6000μ/60m/600m/6/10A	±(0.2%+4)	0.1μA
ACA	600μ/6000μ/60m/600m/6/10A	±(0.6%+3)	0.1μA
Resistance	600/6k/60k/600k/6M/60MΩ	±(0.1%+3)	0.1Ω
Conductance	99.99S	±(0.8%+10)	0.01nS
Capacitance	60n/600n/6μ/60μ/600μ/6m/25mF	±(0.8%+3）※	0.01nF
Temperature	-50～1000°C(thermocouple K type)	±(0.3%+2)	1°C
Frequency	15Hz～50kHz	±(0.04%+4)	0.01Hz
Logic frequency	5Hz～1MHz	±(0.03%+4)	0.001Hz
Duty cycle	0%～100%	±(3d/kHz+2)
Continuity	Buzzer sounds at between 20Ω and 300Ω Open voltage:approx.1.2V
Diode test	Open voltage : approx.3.5V
Electric field sensing (EF)	At the standard sensing voltage of about 20V or more,the bar graph and intermittent sound vary in 5 steps

Display	numeral display 9999 & 6000, bar graph 41 segments
Sampling rate	5 times/sec. 60 teims/sec.for bar graph
Bandwidth	V:40Hz～3kHz 3kHz～20kHz（below 99.99V） A:40Hz～1kHz
Fuse	11A/1000V IR20kA Φ10× 38 mm 0.4A/1000V IR30kA Φ 6.3× 32 mm
Battery	6F22(9V)x1
Battery life	Approx. 60h (manganese battery) at DCV range
Size/Mass	H184×W86×D52mm/Approx.430g（including holster)
Safety	IEC61010 CAT.Ⅲ600V/CAT.Ⅱ1000V
