SANWA PC700 DIGITAL MULTIMETER Original
Detail Produk

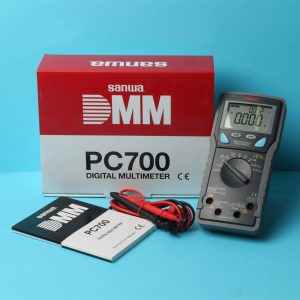

SANWA PC700 DIGITAL MULTIMETER
SANWA PC700 DIGITAL MULTIMETER adalah multitester digital True RMS dengan tingkat akurasi tinggi sebesar 0,06%, yang dirancang khusus untuk pengukuran rangkaian listrik arus lemah (light electric circuits). Perangkat buatan Jepang ini sangat ideal untuk keperluan riset dan pengembangan (R&D), laboratorium, hingga pemeliharaan peralatan elektronik rumah tangga dan telekomunikasi.
Features Sanwa PC700 Digital Multimeter
- 4 digits 9999 count & 3-5/6 digits 6000count
- Maximum DC/AC voltage measurement resolution 0.01mV
- Dual Display shows voltage/current and its frequency, and AC components and DC components of voltage/current
- High speed bar graph
- Frequency measurement (AC sine wave only)
- Logic frequency measurement, duty cycle measurement
- Data hold, Range hold
- Relative value
- Auto power saving mode (30min.) (cancelable)
- Optical Link USB interface (optional)
- Display : numeral display 9999 & 6000, bar graph 41 segments
- Sampling rate : 5 times/sec., 60 times/sec. for bar graph
- Battery life : Approx. 60h (manganese battery) at DCV range
Specifications Sanwa PC700 Digital Multimeter
| PC700 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 60m/600m/9.999/99.99/999.9V | ±(0.06%+2) | 0.01mV | 10MΩ |
| ACV | 60m/600m/9.999/99.99/999.9V | ±(0.5%+3) | 0.01mV | |
| DCA | 600μ/6000μ/60m/600m/6/10A | ±(0.2%+4) | 0.1μA | |
| ACA | 600μ/6000μ/60m/600m/6/10A | ±(0.6%+3) | 0.1μA | |
| Resistance | 600/6k/60k/600k/6M/60MΩ | ±(0.1%+3) | 0.1Ω | |
| Capacitance | 60n/600n/6μ/60μ/600μ/6m/25mF | ±(0.8%+3）※ | 0.01nF | |
| Frequency | 15Hz～50kHz | ±(0.04%+4) | 0.01Hz | |
| Logic frequency | 5Hz～1MHz | ±(0.03%+4) | 0.001Hz | |
| Duty cycle | 0%～100% | ±(3d/kHz+2) | ||
| Continuity | Buzzer sounds at between 20Ω and 300Ω. Open voltage:Approx.1.2V | |||
| Diode test | Open voltage:approx.3.5V | |||
| Display | numeral display 9999&6000, bar graph 41 segments | |
| Sampling rate | 5 times/sec., 60times/sec.for bar graph | |
| Bandwidth | V:40Hz～3kHz 3kHz～20kHz(below 99.99V) A:40Hz～1kHz |
|
| Fuse | 11A/1000V IR20kA Φ10× 38 mm 0.4A/1000V IR30kA Φ 6.3× 32 mm |
|
| Battery | 6F22(9V)×1 | |
| Battery life | Approx.60h (manganese battery) at DCV range | |
| Size/Mass | H184×W86×D52mm/430g(including holster) | |
| Safety | IEC61010 CAT.Ⅲ600V/CAT.Ⅱ1000V |
Standard Accessories:
- Test lead: TL-23a
- Holster: H-700
Optional Accessories:
- Software : PC Link7
- Optical PC link cable : KB-USB7
- Clamp probe : CL-20D, CL-22AD, CL33DC
- Temperature probe : T-300PC (PC Link software is necessary.)
- K type adapter : K-AD
- Test lead : TL-21M, TLF-120
- Carrying case : C-PC7
- Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
