SANWA PC510a DIGITAL MULTIMETER Original
Detail Produk
SANWA PC510a DIGITAL MULTIMETER
SANWA PC510a DIGITAL MULTIMETER Adalah sebuah digital multimeter (DMM) portabel dengan fitur AC True RMS dan tingkat akurasi tinggi sebesar 0.08%. Alat ukur buatan Jepang ini dirancang khusus untuk menganalisis sirkuit arus lemah (weak current circuits), perangkat komunikasi kecil, peralatan elektronik rumah tangga, serta pengecekan berbagai jenis baterai.
Features:
- True RMS AC voltage/current measurement for accurate readings on distorted waveforms.
- 3 5/6‑digit, 5 000‑count LCD with 52‑segment Zoom Bargraph for analog‑style display.
- MAX/MIN recording, Peak Capture (5 ms), Relative mode and Data Hold for advanced diagnostics.
- Auto lead resistance calibration for precise low‑ohm measurement.
- RS‑232C interface (optional USB adapter) for PC data logging.
- Auto and manual ranging with Range Hold.
- Built‑in K‑type thermocouple input for temperature measurement.
Specifications:
| Parameter | Specification |
|---|---|
| Display: | 3 5/6‑digit, 5000‑count LCD; 52‑segment bargraph |
| Sampling Rate: | Digital: 5 times/s; Bargraph: 60 times/s |
| AC Measurement: | True RMS (PC510A) |
| DC Voltage: | 50.00 mV–1000 V, 0.06 % rdg+2 dgt to 0.12 % rdg+2 dgt |
| AC Voltage: | 50.00 mV–1000 V, 0.5 %–1.2 % rdg+3–4 dgt (50 Hz–500 Hz) |
| DC Current: | 500.0 µA–10.00 A, 0.15 % rdg+ dgt to 0.6 % rdg+3 dgt |
| AC Current: | 500.0 µA–10.00 A, 0.6 % rdg+3 dgt (50 Hz–1 kHz) |
| Resistance: | 50.00 Ω–50.00 MΩ, 0.2 %–1.5 % rdg+ dgt |
| Capacitance: | 50.00 nF–9999 µF, 0.8 %–5.0 % rdg+ dgt |
| Frequency: | 10 Hz–125 kHz, 0.01 % rdg+2 dgt |
| Temperature: | –50 °C–1000 °C (K‑type), 0.3 % rdg+3 dgt |
| Continuity/Diode: | Buzzer < 120 Ω; Diode test with open‑circuit voltage < 3 V |
| Auto Power‑Off: | 17 min |
| Power Supply: | 9 V battery (NEDA 1604A/JIS 006P/IEC 6F22), low‑battery warning |
| Operating Environment: | 0–35 °C/0–80 % RH; 35–50 °C/0–70 % RH; < 2000 m altitude |
| Safety: | IEC 61010‑1 CAT III 600 V/CAT II 1000 V; double insulated |
| Dimensions & Weight: | 179 × 87 × 55 mm; 320 g (without holster) |
| Accessories: | Test leads (TL‑82), holster (H‑50), manual, K‑type thermocouple (K‑250PC) |
Applications:
- Circuitry Analysis.
- Communication Equipment Testing.
- Electrical Appliance Diagnostics.
- Lighting Voltage Measurement.
- Battery Condition Assessment.

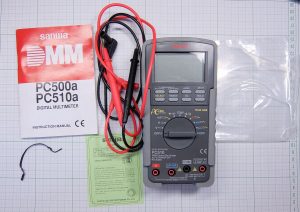

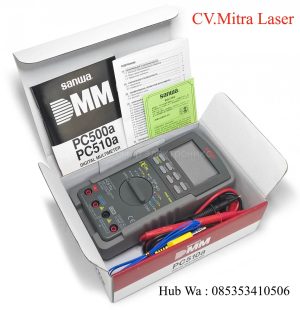

Package Contents:
- Test leads (TL‑82)
- Holster (H‑50)
- Instruction manual
- K‑type thermocouple (K‑250PC)
