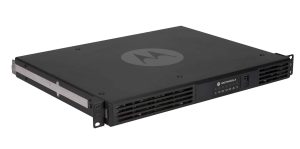

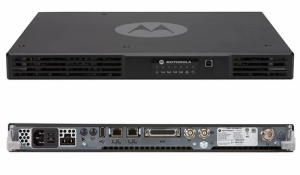

Repeater Motorola SLR-5300 Original # Murah
Repeater Motorola SLR-5300 VHF/UHF Digital Analog Berkualitas Premium Terbaik
Repeater Motorola SLR-5300 bisa beroperasi sebagai repeater analog (konvensional atau MPT 1327), atau sebagai mode campuran analog / digital repeater saat Anda beralih dari sistem analog lama. Dengan berat yang cukup ringan dan cocok untuk di lahan sawit, pertambangan dan di gedung gedung perkantoran dengan frekuensi VHF / UHF.
Selanjutnya, Repeater Motorola SLR-5300 MOTORBO berfungsi untuk memperluas jaringan Radio Mobile ( HT ), Radio Mobil dan Radio Base Station. Oleh karena itu, cocok di pasang di lahan pertambangan, gedung-gedung perkantoran, lahan sawit yang membutuhkan komunikasi lebih maksimal dan pekerjaan anda semakin sukses.
GENERAL SPECIFICATIONS :
Frequency Range 136-174 MHz 400-470 MHz 350-400 MHz
Channel Capacity 64
RF Output Power 1-50 W
Dimensions (H x W x D) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm)
Weight 19 lbs (8.6 kg)
Input Voltage (AC) 100-240 Vac, 47-63 Hz
Current (standby), 110 / 240 V 0.18 / 0.25 A
Current (transmitting), 110 / 240 V 1.5 / 0.9 A
Input Voltage (DC) 11.0-14.4 Vdc
Current (standby) 0.7 A
Current (transmitting) 9.5 A
Operating Temperature Range -22 to +140 °F (-30 to +60 °C)
Humidity RH of 95%, non-condensing at 50 °C (122 °F)
Max Duty Cycle 100%
FCC Description ABZ99FT3094 ABZ99FT4096 –
IC Description 109AB-99FT3094 109AB-99FT4096 –
Digital Vocoder Type AMBE+2™
Battery Charger Capacity 12 V, 3 A
Connectivity Tx (N female), Rx (BNC female), USB A receptacle, 2x Ethernet
Supported System Types Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus
Analog Conventional, MPT 1327
RECEIVER
Frequency Range 136-174 MHz 400-470 MHz 350-400 MHz
Channel Spacing 12.5 / 20 / 25* kHz
Frequency Stability (-30°C, +60°C, +25°C Ref) +/- 0.5 ppm
Sensitivity, 12dB SINAD 0.22 uV
Sensitivity, 5% BER 0.22 uV
Intermodulation Rejection (TIA603D/ETSI) 82 / 73 dB
Spurious Rejection (TIA603D/ETSI) 95 / 90 dB
Audio Distortion < 1%
Hum and Noise, 12.5/20/25* kHz -45 / -45 / -50 dB
TRANSMITTER
Frequency Range 136-174 MHz 400-470 MHz 350-400 MHz
RF Output Power 1-50 W
Max Duty Cycle 100%
Channel Spacing 12.5 / 20 / 25* kHz
Frequency Stability (-30°C, +60°C, +25°C Ref) +/- 0.5 ppm
Intermodulation Attenuation 40 dB
Adjacent Channel Power (TIA603D), 25*/ 12.5 kHz 62 / 78 / 78 dB
Adjacent Channel Power (ETSI), 25* / 12.5 kHz 62 / 78 / 78 dB
Conducted Spurious Emissions -36 dBm < 1 GHz, -30 dBm > 1 GHz
Modulation Fidelity (4FSK) FSK Error 5%, FSK Magnitude 1%
Audio Response TIA603D
Audio Distortion < 1%
Hum and Noise, 12.5/20/25* kHz -45 / -45 / -50 dB
Rated System Deviation, 12.5/20/25* kHz ±2.5 / ±4.0 / ±5.0 kHz
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
