Radio ICOM IC-A120 Air Band

Kategori: ICOM,Radio RIG | Dilihat: 15 Kali
Harga: Rp 12.620.000
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Kode Produk: Radio ICOM IC-A120 Stok Tersedia - 11-03-2024
Detail Produk

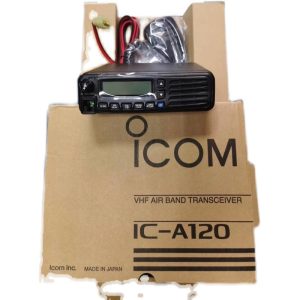

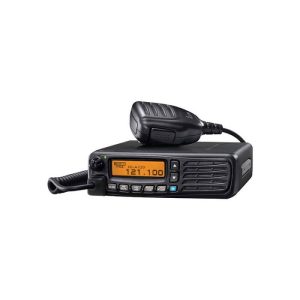

Radio ICOM IC-A120 Air Band VHF Transceiver

Radio ICOM IC-A120 Air Band adalah perangkat radio yang tangguh dan andal untuk komunikasi yang dibuat sesuai spesifikasi militer. IC-A120 memenuhi standar IP54 untuk perlindungan debu dan tahan air dan dapat dihubungkan ke unit Bluetooth opsional untuk kompatibilitas dengan headset Bluetooth nirkabel pihak ketiga.

High Visibility, Simple Operation
The full dot-matrix LCD allows for high visibility and clearly shows alphanumeric characters and icons. Programming memory channels and other radio settings can be simply made from the front panel by radio users. These customizing functions can also be restricted, depending on the radio settings.

Optional Bluetooth® Headset Connectivity
With the optional UT-133A Bluetooth® unit, the IC-A120 can be used with a third-party wireless Bluetooth® headset. Also, using the optional VS-3 Bluetooth® headset, the side tone function is available.

Active Noise Cancelling (ANC)
The newly added built-in ANC reduces background noise in the received and transmitting signals. This function is effective in extremely noisy airport environments full of aircraft noise. The automatic noise limiter (ANL)* reduces pulse-type noise such as engine ignition.

IP54 Dust-Protection and Water Resistance
The IC-A120 has IP54 dust-protection and water resistance. This construction allows for use in open-air vehicles.

Dualwatch and ON-Hook Scan Functions
The dualwatch function checks the priority and operating channels alternatively. The ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger. When you take the microphone OFF hook, the scanning stops at the priority channel or displayed channel (according to the preprogramming).

Side Tone Function
When using a third-party headset with the optional OPC-871A headset adapter, the side tone function allows you to monitor your own transmitted voice via the connected headset. Even when using a hand microphone, your voice can be monitored from the headset.

Optional Speaker-Microphone, HM-217
Listen to received audio through the HM-217’s built-in speaker. From the speaker-microphone’s front panel, access up/down buttons and two programmable buttons (P1/P2) which can be used as a shortcut to activate frequently used functions.

Other Features

A total of 200 memory channels with 12-character channel names
Both 12- and 24- volt systems compatible
8.33 kHz* and 25 kHz channel spacing
36 W (P.E.P.) RF output power
Dualwatch and priority scan functions
Power on password protection
PC programming capability
CI-V Commands for external control
VE-PG3 RoIP gateway for interconnect with other radio devices

Spesifikasi Radio ICOM IC-A120 Air Band

Frequency range (TX/RX) 118.000–136.992 MHz
Channel spacing 25 kHz/8.33 kHz
Type of emission 6K00A3E, 5K60A3E (FCC/EXP)
6K00A3E (Industry Canada)
Operating temperature range –30˚C to +60˚C; –22˚F to +140˚F
Frequency stability ±5 ppm (–30˚C to +60˚C)
Antenna connector SO-239 (50 Ω)
Number of memory channels 200 channels
Power supply requirements 13.75 V/27.5 V DC
Current drain
(at 13.75 V)
TX 5.0 A (maximum)
RX Stand-by 0.5 A
Max. audio 4.0 A
Dimensions (W×H×D)
(Projections are not included)
161×45×175 (mm)
6.34×1.77×6.89 (in) (approximately)
Weight (approximately)  1.5 kg; 3.3 lb (main unit)
