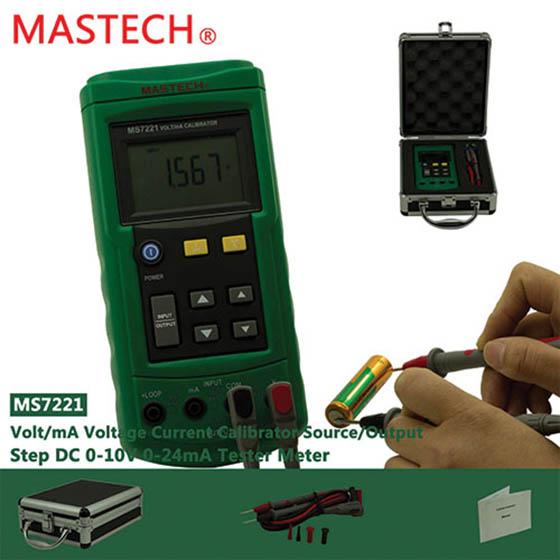

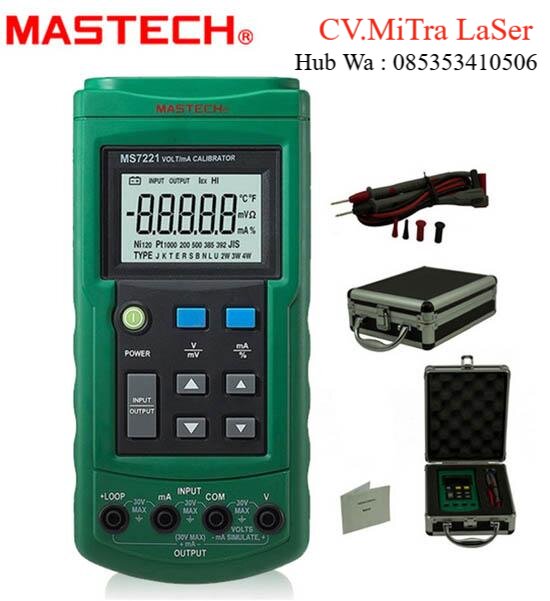

Mastech MS7221 Voltage Calibrator
Mastech MS7221 Voltage Calibrator Original
Mastech MS7221 Volt/mA Calibrator merupakan sumber dan alat ukur. Kalibrator ini dapat digunakan pada keluaran pengukuran loop arus DC 0 hingga 24 mA, dan tegangan DC 0 hingga 10V.
The calibrator cannot be used for measurement and source simultaneously.
Features :
- Storage Temperature -40 ~60c
- Operating Temperature -10 ~55c
- Maximum Operating Altitude 3000 meters
- Temperature coefficient: ±0.005% of range per? for temperature range -10~18? and 28~55?
- Humidity : 95% (10 ºC to 30 ºC) / 75% (30 ºC to 40 ºC) / 45% (40 ºC to 50 ºC) / 35% (50 ºC to 55 ºC)
- Vibration: Random 2G, 5Hz~500Hz
- Surprise: 1 meter drop test
- Low Battery Screen
- Auto Off
Specifications :
| Measurement and Output Voltage Parameter | |||
| Function | Range | Resolution | Accuracy |
| DC Voltage | 0~100mV | 0.01mV | ±(0.02%+2) |
| Input / Output | 0.1~10V | 0.001V | ±(0.02%+2) |
| DC current Input / Output |
0~24mA | 0.001mA | ±(0.015%+4) |
| Loop Power | 24V | N/A | ±10% |
- Power Supply : 1x9V 6LR61 Battery
- Product Size : 190mmx89mmx42mm/7.5″x3.5″x1.7″
- Product Weight : 350g/0.77lb
- Certificate : CE / ETL / RoHS
Accessories:
- Test leads
- Wrapping case
- Battery
- User’s manual
