LUTRON VB-8203 VIBRATION METER Original
Jual LUTRON VB-8203 VIBRATION METER dengan harga murah hanya di CV.MITRA LASER dan tentunya dengan barang Original LUTRON.

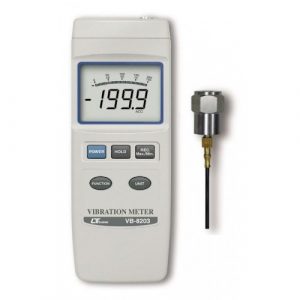

LUTRON VB-8203 VIBRATION METER
Made in Taiwan
Range 0.5 to 199.9 m/s^2
Resolution 0.1 m/s^2
Accuracy ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5
Unit G @ 1 G = 9.8 m/s^2
Range 0.05 to 20.39 G
Resolution 0.01 G
Accuracy ( 5 % + 2 d )
Display With bar graph indicator.
Measurement : Velocity, Acceleration, Displacement
Others Data hold, Max. & Min. value, Data logger.
Frequency range 10 Hz to 1 KHz
Memory Maximum & Minimum value.
Power off Auto shut off, saves battery life, or manual off by push button.
Sampling time Approx. 1 second.
Sampling Time of Data Logger 0, 1, 2, 10, 30, 60, 600, 1800, 3600 sec.
* 0 second : Manual data logger.
* Other sampling time beyond 0
second : Auto data logger.
Data Logger No. 500 no. max.
Data output RS 232 serial output, isolate.
Operating temperature 0 to 50 ( 32 to 122 ).
Operating humidity Less than 80% RH.
Power supply Alkaline or heavy duty type, DC 9V battery,
Velocity ( RMS, Peak, Max Hold )
Unit mm/s
Range 0.5 to 199.9 mm/s
Resolution 0. 1 mm/s
Accuracy ( 5 % + 2 d )
Unit cm/s
Range 0.05 to 19.99 cm/s
Resolution 0. 01 cm/s
Accuracy ( 5 % + 2 d )
Unit inch/s
Range 0.02 to 7.87 inch/s
Resolution 0.01 inch/s
Accuracy ( 5 % + 2 d )
Displacement p-p ( RMS, Max Hold )
Range 1.999 mm
Resolution 0.001 mm
Accuracy ( 5 % + 2 d )
Range 0.078 inch
Resolution 0.001 inch
Accuracy ( 5 % + 2 d )
Accessories included : ( termasuk dalam paket produk )
* Baterai 9 Volt
* Instruction manual 1 PC
* Vibration sensor + magnetic base with cable 1 PC.
* Carrying Case 1 PC.
Optional Accessories ( belum termasuk )
* USB cable, USB-01
* Data Acquisition software, SW-801-WIN
* Data Logger software, DL-2005.
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
