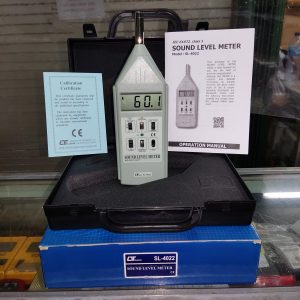

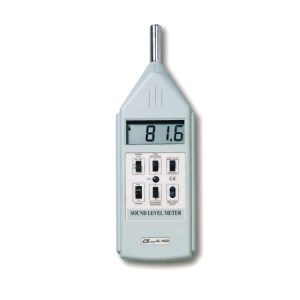

LUTRON SL-4022 SOUND LEVEL METER
Jual LUTRON SL-4022 SOUND LEVEL METER dengan harga murah hanya di CV.MITRA LASER dan tentunya dengan barang Original.
LUTRON SL-4022 SOUND LEVEL METER :
Function dB (A & C frequency weighting), Time weighting (Fast, Slow),
Max. hold, Max. hold reset, AC output.
Measurement Range 3 ranges
( 30 - 70 dB, 60 - 100 dB, 90 - 130 dB ),
Resolution 0.1 dB.
Accuracy Frequency weighting meet IEC 61672 Class 1, calibrating input signal on 94 dB the accuracy of frequency
(23 5 '") weighting is specified as following:
31.5 Hz : 2.0 dB, 63 Hz : 1.5 dB, 125 Hz : 1.5 dB,
250 Hz : 1.4 dB, 500 Hz : 1.4 dB, 1 KHz : 1.1 dB,
2 KHz : 1.6 dB, 4 KHz : 1.6 dB, 8 KHz : + 2.1 dB to -3.1 dB,
Frequency Characteristics of A & C.
Weighting Network A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making
the environmental sound level measurement, always select to A weighting.
C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested
equipment.
Frequency 31.5 Hz to 16 KHz. * Accuracy is tested within 31.5 Hz to 8 KHz.

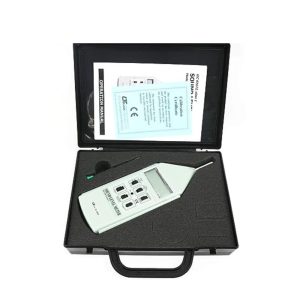

Standard Accessories
Instruction Manual 1 PC.
Calibration screw driver 1 PC.
Carrying case 1 PC.
Battery 9 V 2 PC, 006P
Optional Accessories .
94/114 dB Sound Calibrator, model : SC-942.
Wind shield ball, model : SB-01.
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
