LUTRON PVB-820 PEN VIBRATION METER Original
Jual LUTRON PVB-820 PEN VIBRATION METER dengan harga murah hanya di CV.MITRA LASER dan tentunya dengan barang 100% Original Lutron.
LUTRON PVB-820 PEN VIBRATION METER Original
PEN VIBRATION METER Model : PVB-820
* Function : Acceleration, Velocity.
* Acceleration : 200 m/s2, 20.00 G.
* Velocity : 200 mm/s, 20.00 cm/s.
* Frequency : 10 Hz to 1 KHz.
* Meet ISO2954, Data hold, Memory (Max., Min.).
* DC 1.5 V BATTERY (UM-4, AAA) x 4 PCs.
Lutron PVB-820 Pen Vibration Meter Made in Taiwan
Velocity ( RMS )
Unit
Range 2 to 656 Resolution 1
Accuracy ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5
Calibration Point 50 ( 160 Hz )
Display LCD, size : 20 mm x 28 mm.
Measurement Velocity, Acceleration. * RMS value.
Function Acceleration , g, Velocity mm/s, cm/s, inch/s
Frequency range 10 Hz to 1 KHz *
Zero adjust Build in the Zero adjustment VR, easy to make adjustment.
Sampling time Approx. 1 second.
Operating temperature 0 to 50 ( 32 to 122 ).
Operating humidity Less than 80% RH.
Unit mm/s
Range 0.5 to 199.9 mm/s
Resolution 0. 1 mm/s
Accuracy ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 5
Calibration Point 50 mm/s ( 160 Hz )
Dimension Meter : 175 x 40 x 32 mm
* Meter without sensing head,
Sensing head : Round 9 mm Dia. x 30 mm.

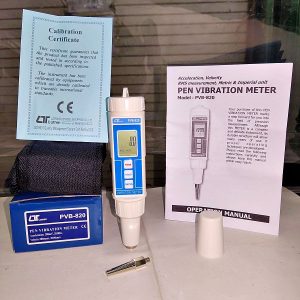

Accessories included ( Termasuk )
Instruction manual 1 PC.
Meter with sensing head 1 Set
Magnetic base 1 PC.
Soft carrying case 1 PC.
batere AAA (1.5V ) 4 Pcs
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
