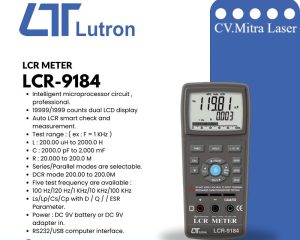

LUTRON LCR-9184 LCR Meter
Jual LUTRON LCR-9184 LCR Meter
* 19,999/1,999 counts dual LCD display.
* AutoLCR smart check and measurement.
* Serial/Parallel modes are selectable.
* Ls/Lp/Cs/Cp with D/Q/θ /ESR parameters.
* Support DCR mode 1.00 Ω to 200.0 MΩ .
* Five different test frequency are available :
100 Hz/120 Hz/1 KHz/10 KHz/100 KHz.
* Test AC signal level : 0.6 V rms typically.
* Test range : ( ex. F = 1 KHz )
L : 200.00 uH to 2000.0 H
C : 2000.0 pF to 2.000 mF
R : 20.000Ω to 200.0 MΩ
* Multi-level battery detector.
* LCD with green light backlight，easy reading.
ELECTRICAL SPECIFICATIONS
1. RESISTANCE
Range 20 Ω, 200 Ω, 2 KΩ, 20 KΩ, 200 KΩ, 2 MΩ
Accuracy : ± ( 0.5% + 5d )
20 MΩ Accuracy : ± ( 1% + 5d )
200 MΩ Accuracy : ± ( 2% + 5d )
Resistance ( Rp/Rs )
Accuracy 100Hz/120Hz : 1000 Hz
20 Ω ± ( 1% + 5d ) :± ( 1% + 5d )
200 Ω, 2 KΩ, 20 KΩ :± ( 0.5% + 5d )
200 KΩ ± ( 0.5% + 5d ) :± ( 0.5% + 5d )
2 MΩ ± ( 1% + 5d ) :± ( 1% + 5d )
20 MΩ ± ( 1% + 5d ) :± ( 2% + 5d )
200 MΩ ± ( 2% + 5d ) :± ( 5% + 5d )
2. Capacitance ( Cp/Cs ) : D ≦ 0.1
Accuracy 100 Hz/120 Hz : 1000 Hz
20 pF ± ( 2% + 5d ) : ± ( 1% + 5d )
200 pF ± ( 1% + 5d )
2000 pF ± ( 0.8% + 5d )
20 nF, 200 nF, 2000 nF, 20 uF, 200 uF ± ( 0.5% + 5d )
2000 uF ± ( 1% + 5d )
20 mF ± ( 2% + 5d )
Accuracy 10 KHz : 100 KHz
20 pF ± ( 1% + 5d )
200 pF, 2000 pF, 20 nF, 200 nF, 2000 nF ± ( 0.5% + 5d )
20 uF ± ( 0.8% + 5d )
200 uF ± ( 1% + 5d ) -//-
3. Inductance ( Lp/Ls ) : D ≦ 0.1
Accuracy 100 Hz/120 Hz /1000 Hz
20 uH ± ( 1% + 5d )
200 uH ± ( 1% + 5d )
2000 uH ± ( 0.8% + 5d )
20 mH ± ( 0.5% + 5d )
200 mH ± ( 0.5% + 5d )
2000 mH ± ( 0.5% + 5d )
20 H ± ( 0.5% + 5d )
200 H ± ( 0.5% + 5d )
2000 H ± ( 1% + 5d )
Standard accessories ( Termasuk )
* Instruction manual
* Batere Kotak 9 Volt
* Alligator clips
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
