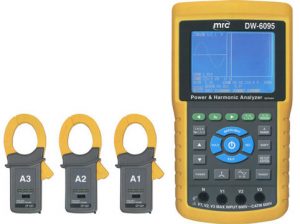

LUTRON DW-6095 3 PHASE POWER ANALYZER WITH HARMONIC
Jual LUTRON DW-6095 3 PHASE POWER ANALYZER WITH HARMONIC dengan harga murah hanya di CV.MITRA LASER dan tentunya dengan barang Original LUTRON.
LUTRON DW-6095 3 PHASE POWER ANALYZER WITH HARMONIC
OVERVIEW:
3 Phase Power Analyser Lutron DW-6095 brings basic power analysis, and fault finding within the grasp of most technicians. Included is a complete, ready to use kit for measuring all power parameters on industrial installations to 1200A, with extension using clamp CP3000 to 3000A.
FEATURES:
AC parameters, Power Factor, Phase, Harmonics,Crest Factor, Active, Apparent, Reactive Power
Peak AC voltage and current
IEC 1010 CAT III 600V
Includes 3 x 1200 amp current clamps
Real time logger 2 seconds to 7200 seconds - to SD card (instantaneous values)
Transients recorded such as dip, swell and outage with programmable thresh hold (not waveform)
Display waveform, harmonics, Total harmonic distortion, phase diagram
Export recorded data direct via SD card to EXCEL software for analysis
WHAT'S IN THE BOX:
Instruction Manual
Test Leads (TL88-4AT) 4pcs
Alligator clips (TL88-4AC) 4pcs
1200A Clamp Probe (CP-1201-A1/A2/A3) 3pcs
AC to DC 9V Adapter 1pc
SD Card 2GB 1pc
Soft Carrying Bag CA-92 1pc
OPTIONAL ACCESSORIES (DIJUAL TERPISAH):
USB Cable , USB-01
RS232 cable, UPCB-02
2000 A Clamp Probe, CP-2000-A1/A2/A3
3000 A Flexible Clamp Probe, CP-2000-A1/A2/A3
200 A Clamp Probe, CP-200-A1/A2/A3
Data Acquisition software, SW-U811-WIN
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
