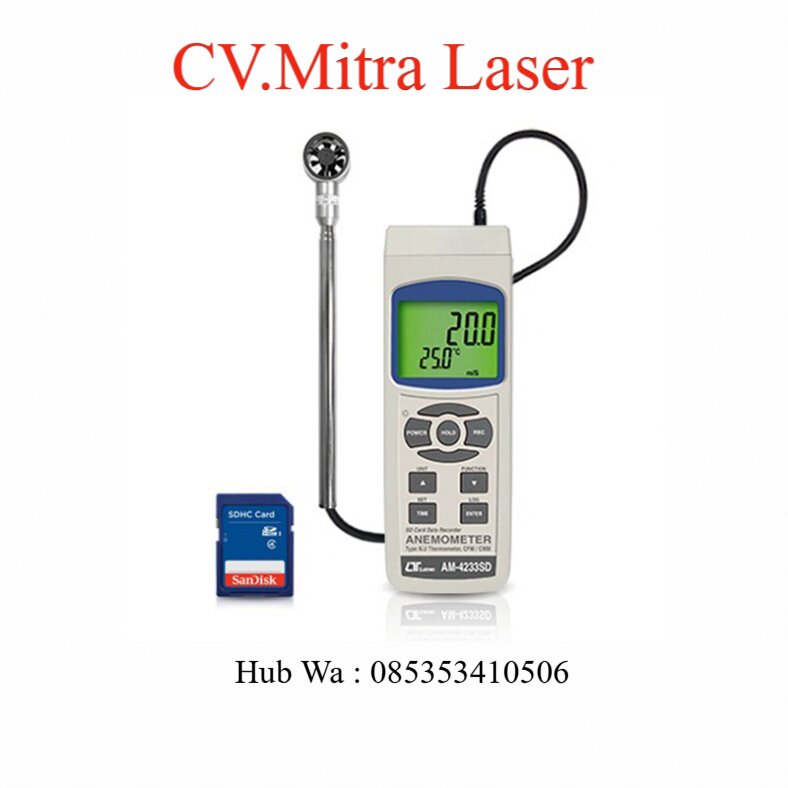

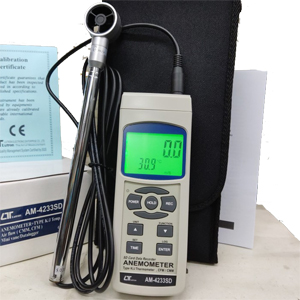

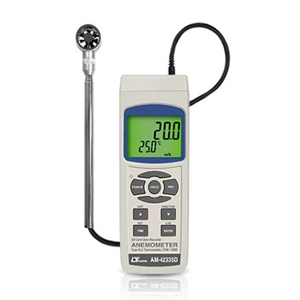

LUTRON AM-4233SD Mini Vane Anemometer

LUTRON AM-4233SD Mini Vane Anemometer

LUTRON AM-4233SD Mini Vane Anemometer adalah anemometer portabel profesional dengan sensor kipas mini (mini vane) berdiameter 35 mm yang terintegrasi dengan probe teleskopik. Alat ini dirancang khusus untuk mengukur kecepatan udara, aliran volume udara (CMM/CFM), dan suhu di area sempit atau sulit dijangkau. Fitur unggulannya adalah pencatat data (data logger) waktu nyata yang langsung menyimpan hasil ukur ke kartu memori SD dalam format file Excel (.xls) tanpa memerlukan perangkat lunak tambahan.

Features Lutron AM-4233SD Mini Vane Anemometer :

• Mini vane with 35mm Dia., lowfriction ball bearing mounted wheel design provides high accuracy at high and low air velocity
• Telescope probe, extension length 620 mm max
• Replacement anemometer van set
• velocity : m/s, Ft/min, Km/h, Knot, Mile/h
• Cai flow ( CFM, CMM ) measurement
• Air temperature ( ℃,℉ )
• Air Temp. used thermistor sensor, fast response time
• Fast humidity measuring response time
• Type K, Type J thermocouple thermometer
• Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds
• Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 )
• Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves
• SD card capacity : 1 GB to 16 GB
• LCD with green light backlight, easy reading
• Can default auto power off or manual power off
• Data hold, record max. and min. reading
• Microcomputer circuit, high accuracy
• Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter
• RS232/USB PC COMPUTER interface
• Separate probe, easy for operation
• Applications : Environmental testing, HVAC, Air conveyors, Flow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case, Paint spray booths . measurements

Specifications Lutron AM-4233SD Mini Vane Anemometer :

• Circuit: Custom one-chip of microprocessor LSI circuit
• Display:
  º LCD size : 52 mm x 38 mm
  º LCD with green backlight ( ON/OFF )
• Measurement Unit:
   Air velocity:
   m/s (meters per second)
   Km/h ( kilometers per hour )
   Ft/min ( FPM, feet per minute )
   Knots ( nautical miles per hour )
   Mile/h ( mph, miles per hour )
   Air flow : CFM, CMM
   CFM : cube feet per minute
   CFM : cube meters per minute
   Type K/ Type J thermometer : ℃, ℉
   Air temperature: ℃, ℉
• Datalogger Sampling Time Setting range:
  º Auto: 1 second to 3600 seconds @Sampling time can set to 1 second,
  º Manual: Push the data logger button once will save data one time. @Set the sampling time to 0 second. @Manual mode, can also select the 1 to 99 position ( Location ) no.
• Memory Card: SD memory card. 1 GB to 16 GB. * It recommend use memory card 4 GB
• Advanced setting:
   Set clock time ( Year/Month/Date, Hour/Minute/ Second )
   Set sampling time
   Auto power OFF management
   Set beep Sound ON/OFF
   Decimal point of SD card setting
   SD memory card Format
   thermometer type to Type K or Type J
   temperature unit to ℃ or ℉
   air flow type ( CFM/USA, CMM/EURO )
   Set air flow area dimension
• Temperature Compensation: Automatic temp. compensation for the type K/J thermometer
• Data Hold: Freeze the display reading
• Memory Recall: Maximum & Minimum value
• Sampling Time of Display: Approx. 1 second
• Operating Temperature: 0 to 50 ℃
• Operating Humidity: Less than 85% R.H
• Data Output: RS 232/USB PC computer interface
• Power Supply:
  º Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent
  º DC 9V adapter input. ( AC/DC power adapter is optional )
• Power Current:
  º Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 30 mA
  º When SD card save the data and LCD Backlight is OFF) : Approx. DC 50 mA
• Weight: 347 g/ 0.76 LB. * Meter only
• Dimension:
  º Main instrument : 182 x 73 x 47.5 mm ( 7.1 x 2.9 x 1.9 inch )
  º Anemometer sensor probe : Round, 35 mm Dia

Accessories Included:

• Instruction manual……………………1 PC
• Anemometer probe………………….1 PC
• Soft carrying case (CA-05B)………..1 PC

Optional Accessories:

• SD Card ( 4 G )
• Replacement anemometer van set
• Type K thermocouple probes
• AC to DC 9V adapter
• USB cable, USB-01
• RS232 cable, UPCB-02
• Data Acquisition software, SW-U801-WIN
• Excel Data Acquisition software, SW-E802
