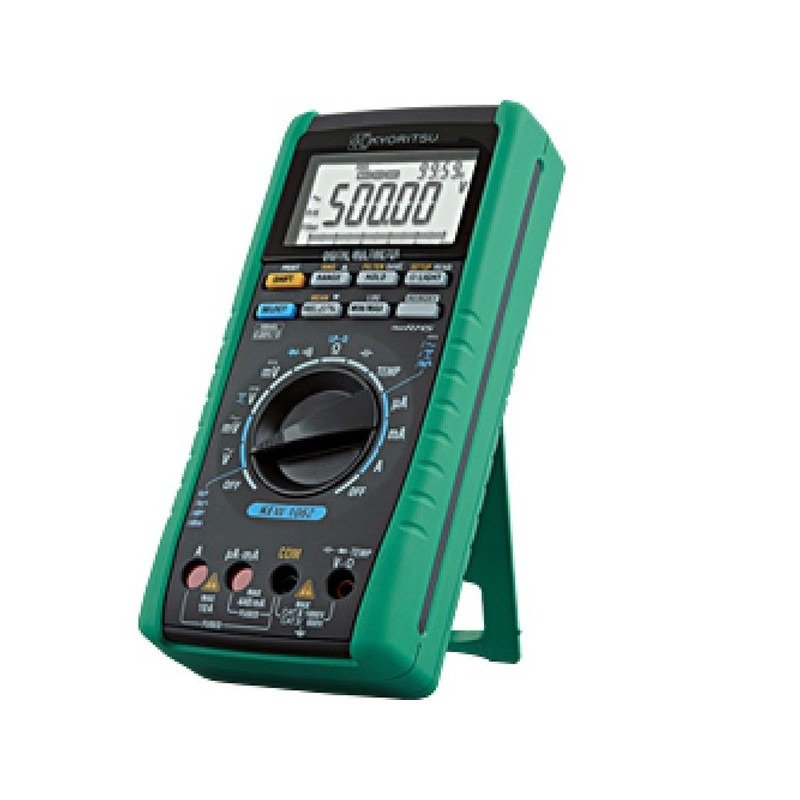

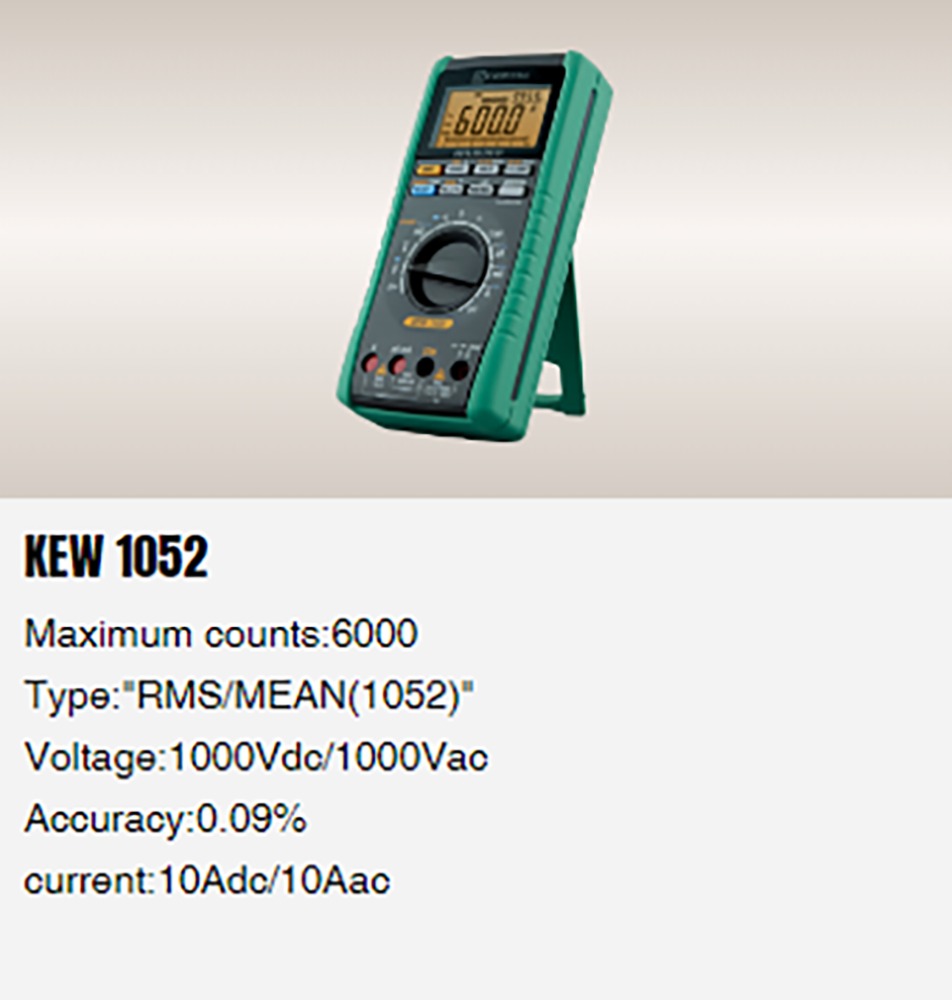

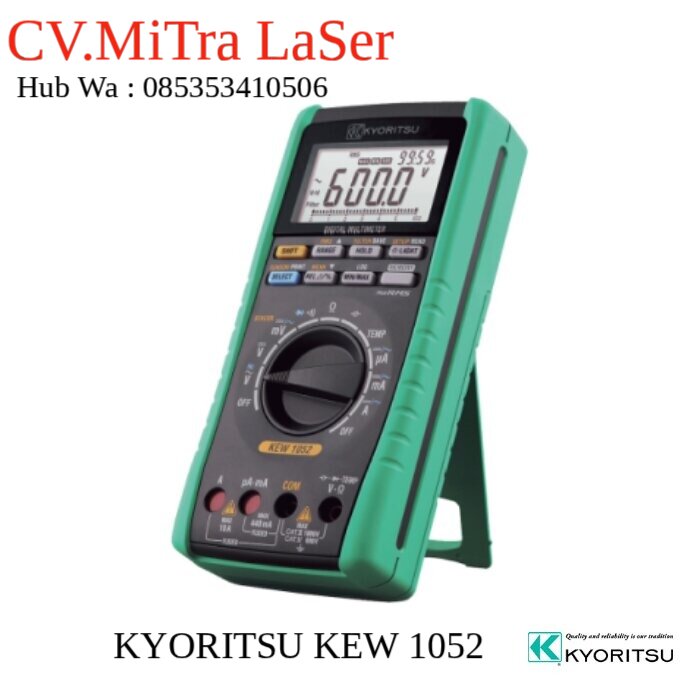

KYORITSU KEW 1052 Digital Multimeter
KYORITSU KEW 1052 Digital Multimeter
KYORITSU KEW 1052 adalah alat pengukur listrik digital berkualitas tinggi yang dirancang untuk penggunaan industri, laboratorium, dan servis profesional. Alat ini memiliki pengukuran yang sangat akurat serta fitur-fitur tambahan untuk mendukung tugas-tugas detail dan kompleks dalam pengukuran listrik.
Fitur Utama
Akurasi & Performa
– Akurasi dasar DC tinggi hingga ±0.09 % rdg. ±2 digit.
– Display besar 6.000 counts dengan backlight.
– Pengukuran True-RMS dan opsi MEAN (rata-rata) untuk AC.
– Low-pass filter untuk pengukuran pada motor dan konverter frekuensi.
– Fungsi kalibrasi pengguna (user calibration).
Rentang Pengukuran Lengkap
– Tegangan DC & AC sampai 1000 V.
– Arus DC & AC sampai 10 A.
– Resistansi, Frekuensi, Kapasitansi.
– Temperatur (dengan probe K-type) dari −50 °C hingga 600 °C.
– Continuity / buzzer, Diode test, dan fungsi pengukuran lain.
Fitur Tambahan
– Penyimpanan data internal: 1.600 data logging + 100 data manual.
– Bisa dikoneksikan ke PC via USB (dengan set komunikasi opsional).
– Fungsi seperti Data Hold, Auto Hold, Max/Min/Avg.
Keamanan & Desain
– Standar keselamatan IEC 61010-1 CAT IV 600 V / CAT III 1000 V.
– Cangkang dengan fitur proteksi terminal untuk mencegah salah sambung.
– Rentang suhu operasional lebar (−10 °C sampai +55 °C).
Fisik & Kelengkapan
– Dimensi sekitar 192 × 90 × 49 mm, berat sekitar 560 g (termasuk baterai).

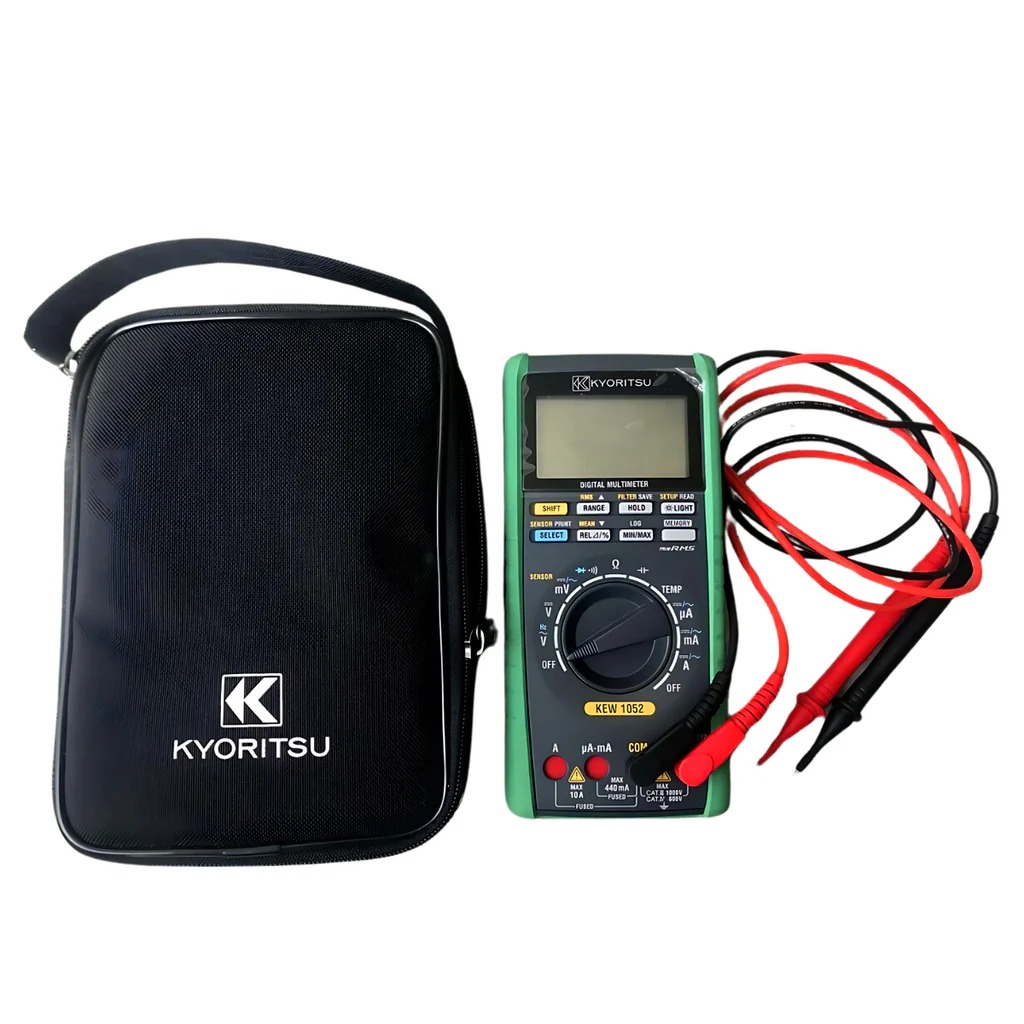

– Dilengkapi kabel uji, baterai, fuse cadangan, manual.
KYORITSU KEW 1052 Cocok Untuk
Teknisi listrik industri
Pengukuran & troubleshooting di panel kontrol
Laboratorium pengujian dan perbaikan peralatan elektronik
Monitoring data jangka panjang
Specifications Kyoritsu KEW 1052 Digital Multimeters
| Detection mode | MEAN/RMS (switch) |
|---|---|
| DC V | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy) |
| AC V [RMS] | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) |
| AC V [MEAN] | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) |
| DC A | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy) |
| AC A [RMS] | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy) |
| Continuity buzzer | 600.0Ω (The buzzer turns on for resistances lower than 50±30Ω) |
| Diode test | 2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current) |
| Capacitance | 10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy) |
| Frequency | 10.00 – 99.99/90.0 – 999.9Hz/0.900 – 9.999/9.00 – 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) |
| Temperature | -50 – 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe) |
| Other functions | Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *, LCD backlight |
| Applicable standards | IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC) |
| Power source | R6 (1.5V)×4 (Auto power off: approx. 20 minutes) |
| Dimensions | 192(L)×90(W)×49(D) mm |
| Weight | Approx. 560g (including batteries) |
| Included Accessories | 7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) |
Option
| Description | Model | Specification | |
|---|---|---|---|
| Crocodile clip test lead | 7234 | CAT IV 600V, CAT III 1000V | |
| AC/DC Clamp Sensor | 8115 | AC 130A / DC 180A | |
| Clamp sensor | 8121 | AC 100A | |
| 8122 | AC 500A | ||
| 8123 | AC 1000A | ||
| 8146 | AC 30A | ||
| 8147 | AC 70A | ||
| 8148 | AC 100A | ||
| Banana Ø4mm Adjuster Plug | 7146 | length:190mm | |
| USB Communication set | 8241 | USB adaptor + USB cable + DMM Software | |
| Carrying case | 9154 | for the main unit with testi leads and communication cable | |
Thermocouple Type K Specification
| Description | Model | Specification |
|---|---|---|
| Temperature probes | 8405 | -40ºC – 500ºC (Surface type, Point material: Ceramic) |
| 8406 | -40ºC – 500ºC (Surface type) | |
| 8407 | -40ºC – 700ºC (Liquid, Semi-solid) | |
| 8408 | -40ºC – 600ºC (Air, Gas) |
