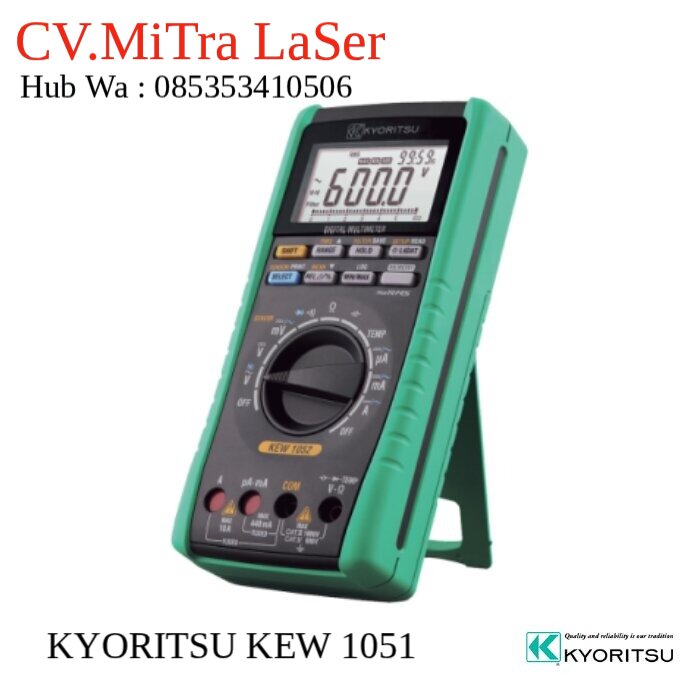

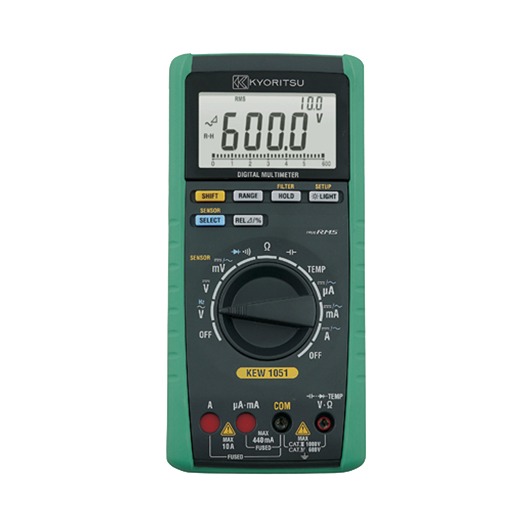

KYORITSU KEW 1051 Digital Multimeter
KYORITSU KEW 1051 Digital Multimeter
KYORITSU KEW 1051 adalah multimeter digital profesional dengan tingkat akurasi tinggi dan fitur lengkap, dirancang untuk keperluan electrical testing profesional, teknisi listrik, dan insinyur. Produk ini menawarkan pengukuran yang andal dan presisi serta fitur keselamatan sesuai standar industri.
Fitur Utama
Akurasi Tinggi: Akurasi dasar DC hingga ±0.09% untuk pengukuran yang teliti.
True RMS: Mengukur nilai True RMS sehingga hasil tetap akurat walau terhadap bentuk gelombang non-sinus.
Layar Besar 6000 Count: Tampilan digital 6000 count dan bar graph 31 segmen untuk pengamatan yang jelas.
Low-pass Filter: Berguna khususnya saat mengukur tegangan di lingkungan dengan gangguan frekuensi tinggi (misalnya motor drive).
Fungsi Kalibrasi Pengguna: Dapat disesuaikan (user calibration) supaya tetap akurat selama masa pakai.
Desain & Keamanan
Desain Aman untuk Industri: Tahan terhadap penggunaan berat dalam lingkungan industri.
Terminal Shutter: Penutup terminal mencegah kesalahan dalam memasang kabel uji.
Standar Keselamatan Tinggi: Memenuhi IEC 61010-1 CAT IV 600 V / CAT III 1000 V, cocok untuk instalasi listrik besar.
Rentang Suhu Operasi Lebar: Dari -10 °C sampai 55 °C, dapat bekerja dalam berbagai kondisi lingkungan.
Fungsi Pengukuran
Tegangan DC dan AC
Arus DC dan AC
Resistansi
Kapasitansi
Frekuensi
Tes dioda
Continuity (buzzer)
Suhu (dengan probe K-type)
Fitur Data Hold, Auto Hold, Range Hold, dan Backlight
Specifications Kyoritsu KEW 1051 Digital Multimeter
RMS
| DC V | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy) |
|---|---|
| AC V [RMS] | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) |
| DC A | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy) |
| AC A [RMS] | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy) |
| Continuity buzzer | 600.0Ω (The buzzer turns on for resistances lower than 50±30Ω) |
| Diode test | 2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current) |
| Capacitance | 10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy) |
| Frequency | 10.00 – 99.99/90.0 – 999.9Hz/0.900 – 9.999/9.00 – 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) |
| Temperature | -50 – 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe) |
| Other functions | Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Zero Adjustment (Capacitor, Resistance), LCD backlight |
| Applicable standards | IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC) |
| Display | 6,000 counts |
| Power source | R6 (1.5V)×4 (Auto power off: approx. 20 minutes) |
| Dimensions | 192(L)×90(W)×49(D) mm |
| Weight | Approx. 560g (including batteries) |
| Included Accessories | Accessories 7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) |
Option
| Description | Model | Specification |
|---|---|---|
| Crocodile clip test lead | 7234 | CAT IV 600V, CAT III 1000V |
| AC/DC Clamp Sensor | 8115 | AC 130A / DC 180A |
| Clamp sensor | 8121 | AC 100A |
| 8122 | AC 500A | |
| 8123 | AC 1000A | |
| 8146 | AC 30A | |
| 8147 | AC 70A | |
| 8148 | AC 100A | |
| Banana Ø4mm Adjuster Plug | 7146 | length:190mm |
| Carrying case | 9154 | for the main unit with testi leads and communication cable |
Thermocouple Type K Specification
| Description | Model | Specification |
|---|---|---|
| Temperature probes | 8405 | -40ºC – 500ºC (Surface type, Point material: Ceramic) |
| 8406 | -40ºC – 500ºC (Surface type) | |
| 8407 | -40ºC – 700ºC (Liquid, Semi-solid) | |
| 8408 | -40ºC – 600ºC (Air, Gas) |
