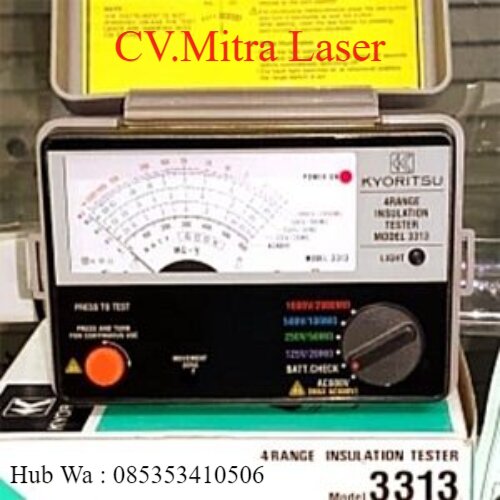

Kyoritsu 3313 Analog Insulation Tester
Jual Kyoritsu 3313 Analog Insulation Tester 1000V
Kyoritsu 3313 adalah alat penguji isolasi (insulation tester) analog yang digunakan untuk mengukur resistansi isolasi pada sistem atau komponen listrik. Alat ini membantu mendeteksi potensi kerusakan isolasi yang dapat menyebabkan kebocoran arus dan bahaya bagi pengguna.
+/- Alat diproduksi tahun 2000 ( ORIGINAL MADE IN JAPAN )
4 test voltages plus AC voltage range.
Colour coded scales and range switch position for easy reading.
Test leads with remote control switch .
New robust housing case.
Back light function.
Neck strap for both hand #39;s operation.
Insulation Resistance
- DC Test Voltage : 125V/ 250V/ 500V / 1000V
- Measuring ranges : 20 M Ohm, 50 M Oh, 100 M Ohm, 1000 M Ohm
- Primary effective measuring ranges : 0.02 – 10 M/ 0.05 – 20 M/ 0.1 – 50 M/ 2 – 1000 M
- Accuracy : +- 5%
- Secondary effective measuring ranges : 10-20M/ 20-50M/ 50-100M/ 100-2000M
- Accuracy : +- 10%
- AC Voltage Test : 600 V AC ( Accuracy +- 3% )
- Withstand Voltage : 6000V AC for 1 minute
- Dimension : 175(L)x 115(W) x 87.5 (D) mm
- Power : Batere AA ( 1.5Volt) = 8 pcs
Accessories yang termasuk
Test Lead with remote control switch 7076
Test lead for Guard Terminal 7081
Pouch for Test Lead
Shoulder strap & Pad
Instruction manual
Batere AA (1.5V ) 8 pcs
.Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
