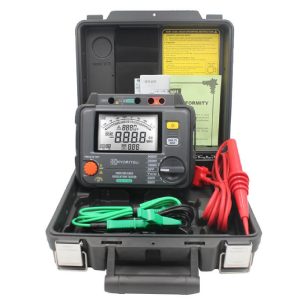

KYORITSU 3125A HIGH VOLTAGE INSULATION TESTER Original
Jual KYORITSU 3125A HIGH VOLTAGE INSULATION TESTER
• Insulation Resistance up to 1TΩ
• Short-Circuit Current up to 1.5mA
• Wide Test Voltage from 250V to 5000V
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V
Rated voltage 250V 500V 1000V 2500V 5000V
Accuracy 0.0 - 100.0MΩ 0.0 - 99.9MΩ
80 - 1000M Ω 0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 2.00G Ω 0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 9.99GΩ
8.0 - 100.0GΩ 0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 9.99GΩ
8.0 - 99.9GΩ
80 - 1000GΩ
±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt
±20%rdg
(100GΩ or more)
Short circuit current 1.5mA
Output voltage
Accuracy ±10% -10 - +20% 0 - +20%
Monitor ±10%rdg±20V
Voltage measurement
Measuring range AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V
Accuracy ±2%rdg±3dgt
General
Applicable standards IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2,
IEC 61010-031, IEC 61326-1, 2-2
Dimensions 177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Hard case)
Including accessories( Termasuk accessories )
* 7165A (Line probe: 3m)
* 7264 (Earth cord: 3m)
* 7265 (Guard cord: 3m),
* 8019 (Hook type prod)
* 9180 (3025A Hard case)
* 9181 (3125A Hard case),
* instruction manual
* Batere model LR14 / R14 ( Batere Size C ) × 8pcs
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
