Fusion Splicer INNO Instrument M9 adalah alat penyambung serat optik (fiber optic) dengan desain ultra-portabel dan ringkas yang dirancang untuk efisiensi tinggi di lapangan. Menggunakan teknologi Core Alignment dengan sistem 6 motor, alat ini memastikan keselarasan inti kabel serat optik yang sangat presisi untuk menghasilkan redaman (loss) yang minimal.

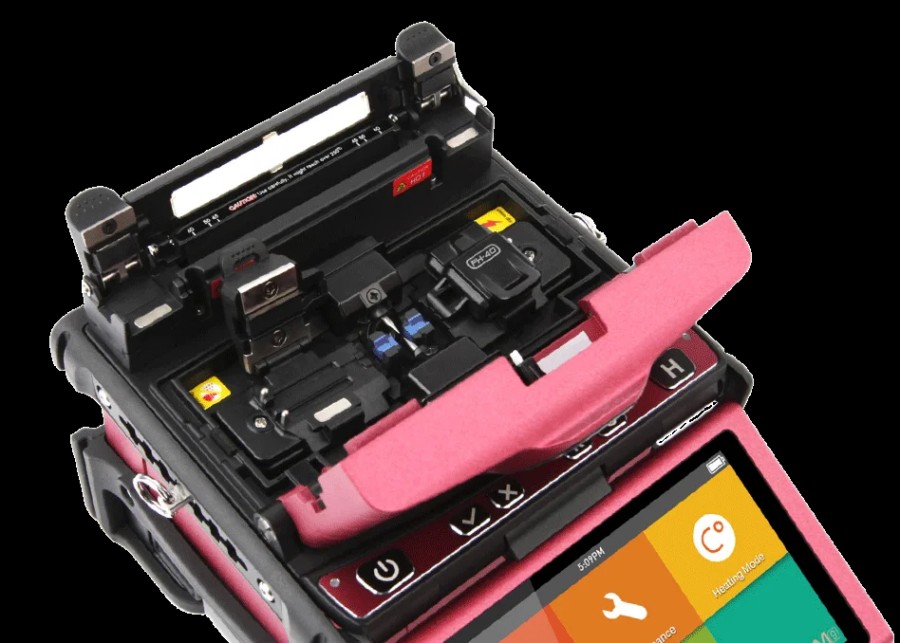

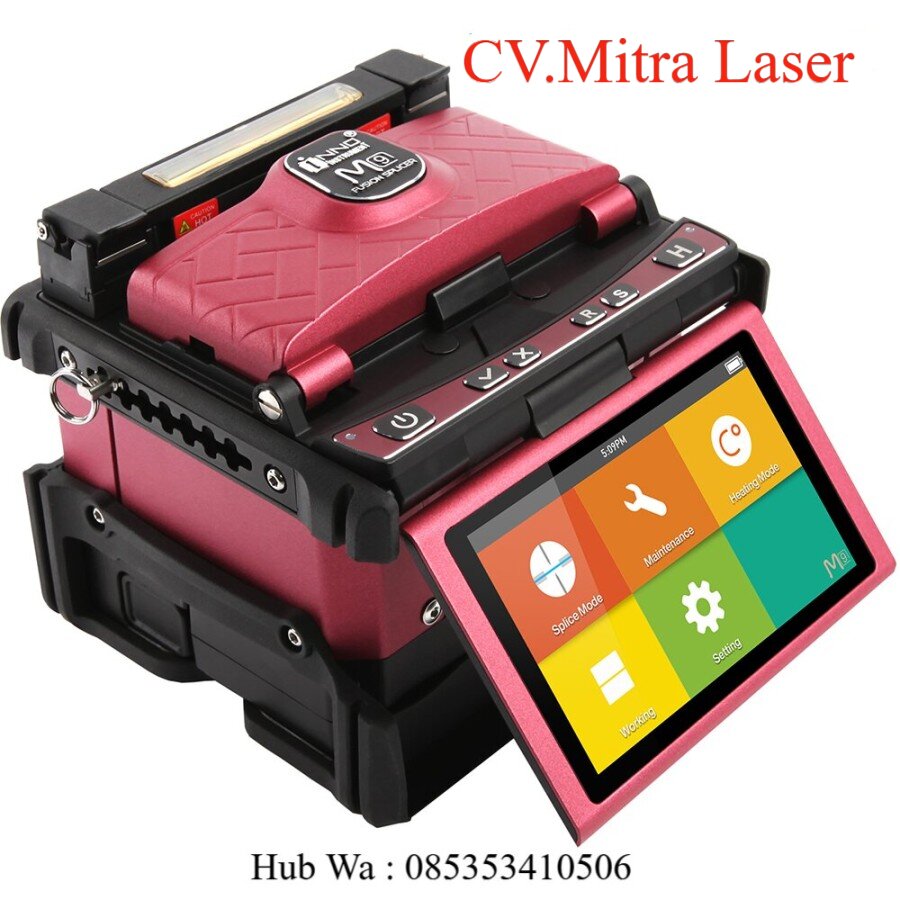

INNO Instrument M9 Fusion Splicer
The INNO Instrument M9 Fusion Splicer is a compact and efficient tool designed for splicing optical fibers. It features a core-alignment method for precise splicing, ensuring optimal performance.
Key features and benefits:
- Ultra-portable design: Lightweight and compact, making it easy to carry and use in various field conditions.
- Fast splicing speed: Offers a state-of-the-art splicing speed of 5.5 seconds, increasing productivity.

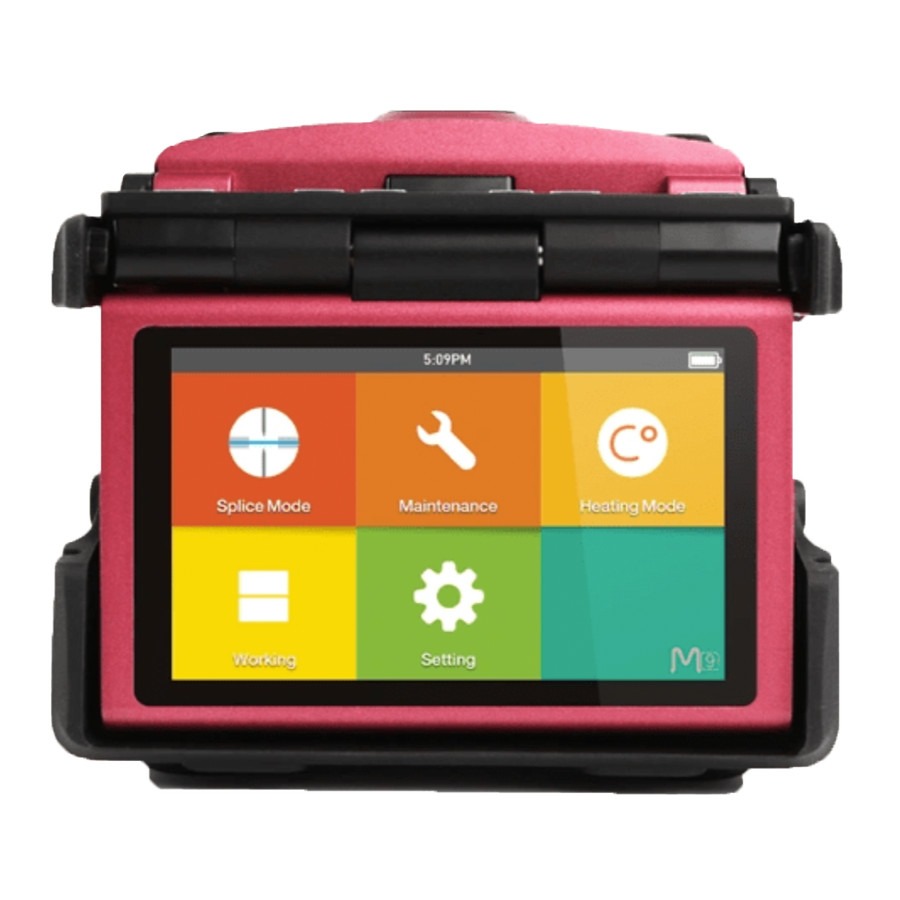

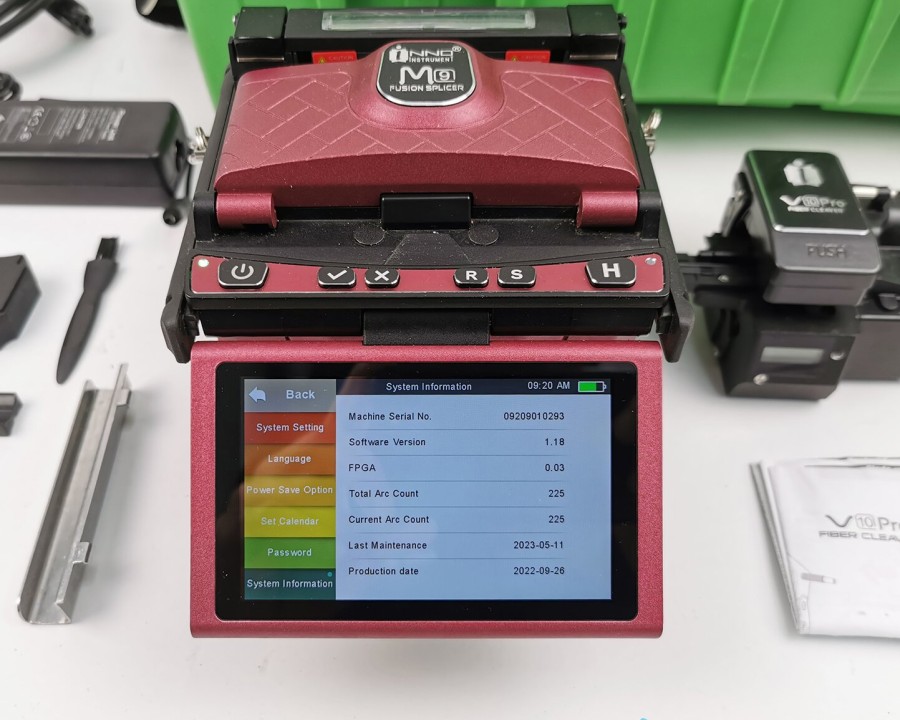

- High-resolution LCD touchscreen: Provides clear and detailed fiber images for easy viewing and alignment.
- User-friendly interface: Intuitive GUI (Graphic User Interface) with touch screen and button controls for effortless
operation.
- Adjustable strap hanger: Allows for customization of the working station, ensuring comfortable and efficient use.

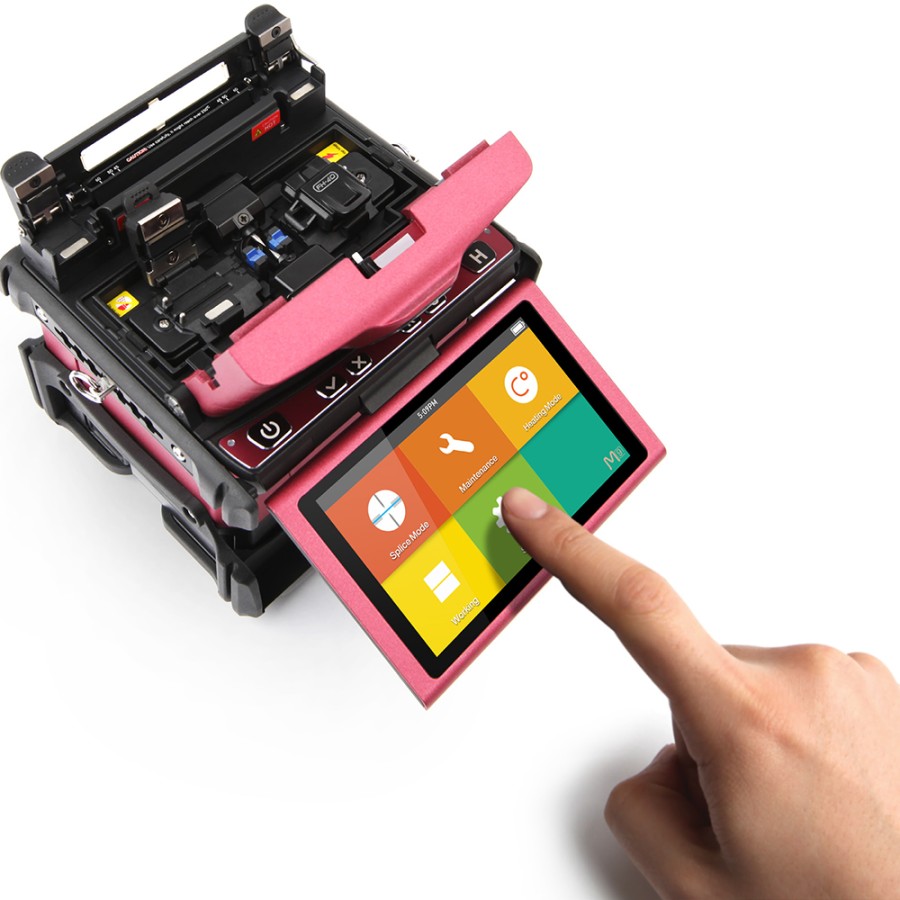

- Dual operating mode: Supports both touch screen and button controls for flexibility.
- Bright LED lights: Provides illumination in low-light environments for clear visibility.
- Durable construction: Built to withstand the demands of field use, ensuring long-lasting performance.
Applications:
- Telecommunications
- Data centers
- Fiber-to-the-home (FTTH) networks
- Industrial automation
Additional information:
- Model: M9
- Type: Core-alignment fusion splicer
- Splicing speed: 5.5 seconds
- Screen size: 4.3 inch
- Power source: Rechargeable battery
- Weight: Approximately 1.5 kg
Technical Specifications
| Model | M9 | Fiber Alignment Mode | Core Alignment | Motor Operation | 6 Motors | Dimension | 136H x 114W x 125D (including rubber bumper) | Weight | 1.67kg (including battery) / 1.43kg (without battery) | Number of Fiber | Single | Applicable Fibers | SM(ITU-T G.652&T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655) | Compatible Fiber / Cable | 0.25 – 3.0 mm / indoor Cable | Cleaved Length | 10 – 16mm | Cladding Diameter | 80 μm – 150 μm | Splicing Mode | Max 128 modes, preset 24 modes | Heating Mode | Max 32 modes, preset 7 modes | Typical Splice Loss | 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) |
Measured by cut-back method relevant to ITU-T standards. |
|
| Return Loss | >> 60dB | Lighting | 2 White LEDs | Splicing Time | Quick mode: 7 sec (Avg.) / SM Auto: 9sec (Avg.) |
| Estimated Splice Loss | Available | Heating Sleeve Length | 20 mm – 60 mm | Heating Time | 13 sec (45mm, slim 60mm) , 15 sec (60mm) | Results Storage | Last 10,000 records | Tension Test | 1.96 – 2.25N | Operating Condition | Altitude 0-5000m above sea level, Humidity 0-95%RH, -10-50°C, Wind 15m/s Humidity | Storage Condition | 0-95%RH, -20-60°C, battery -20-30°C | Display | 90° bi-directional view, 4.3” Color High Resolution Display | Fiber View & Magnification | 300X magnification with 3 display modes, 400X partial magnification | Power Supply | AC Input 100-240V, DC Input 9-14V | No. of Splice / Heating with |
|
Battery |
|
| Typical usage: 130 cycles / Power save usage: 200 cycles | Operating Methods | Button / Touch Screen | Automatic Calibration | Automatic arc calibration by air pressure and temperature | Electrode Life | 5500 arcs, can be extended by using an electrode grinder | Terminal | Mini USB |
Weight and Dimensions |
|
| Height | 4.92 inches (125mm) | Width | 5.66 inches (144mm) | Depth | 5.35 inches (136mm) | Weight | 3.68 pounds (1.67kg including battery) |

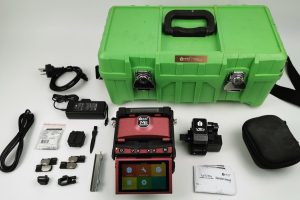

Package List |
|

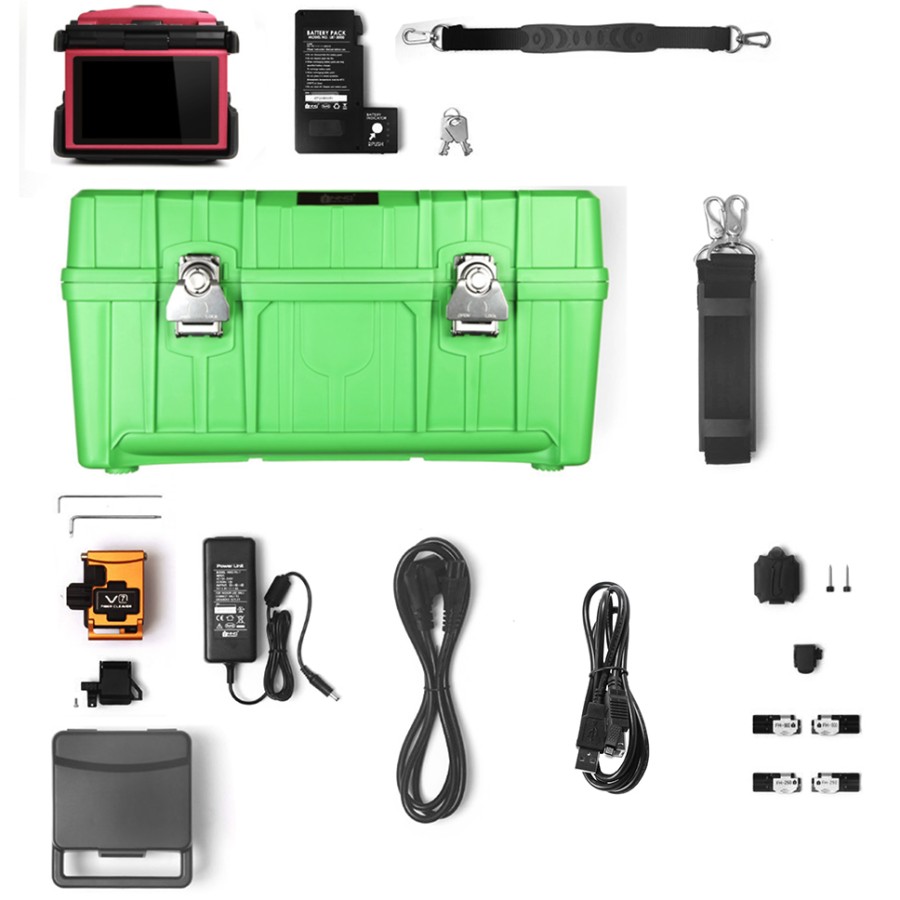

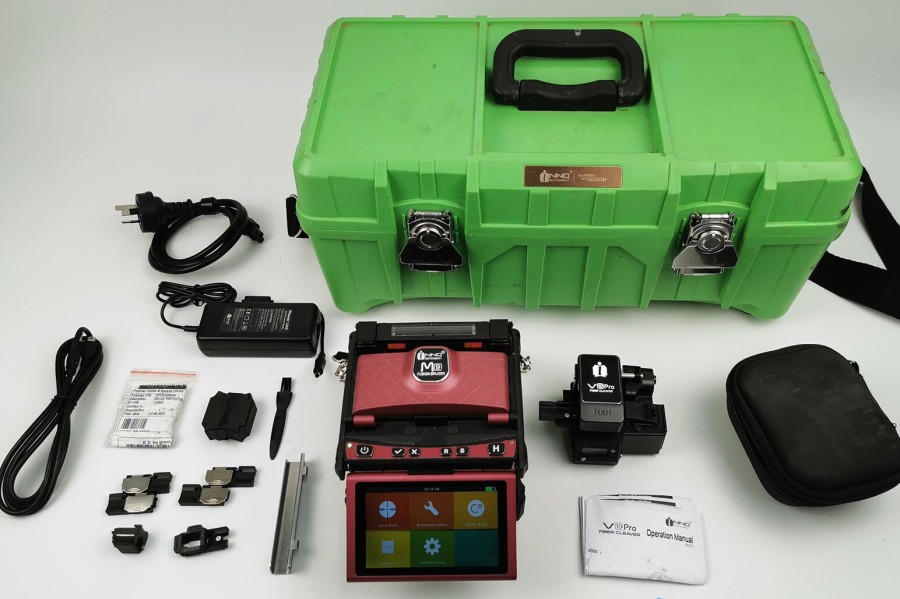

| Fusion Splicer | M9 | High Precision Cleaver | V7 | Simple Optical Fiber Collector | SC-V7-01 | Fiber Holder | FH-40 | SOC Heater Cover | HTN-SOC | AC Adapter | JS-1618 | Cooling Tray | CG-22 | Electrodes | E-50 | Battery Pack | LBT-3000 | Power Cable | ACC-25 | USB Cable | CTA-01 | Carrying Case | ICC-50 |
