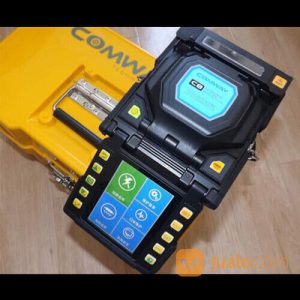

Fusion Splicer COMWAY C8

Kategori: Fiber Optik,Fusion Splicer | Dilihat: 81 Kali
Harga: -
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Kode Produk: COMWAY C8 Stok Tersedia - 08-12-2023
Detail Produk

Fusion Splicer COMWAY C8 Berkualitas Premium Terbaik

Fusion Splicer Comway C8 adalah alat yang ampuh untuk menyambung kabel serat optik. Dengan masa pakai baterai yang lama, Comway C8 dapat digunakan dalam berbagai kondisi di lapangan.

Features
* Profile Alignment System (PAS).
* Fast boot technology
* 9 sec. splice time, 25 sec. heating time
* Easy to replace electrode and fibre holder
* High speed USB interface
* Dust, rain, wind and shock resistant

Technical Specifications

Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657)
Splice mode single fiber
Cladding diameter 80 – 150 µm
Coating diameter 100 – 1000 µm
Cleave length 8~16 mm
Average splice loss SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZ/NZDS: 0.04 dB, BI: 0.02 dB
Return loss ≥ 60 dB
Average splice time 6 sec. SM-SM Fast program
Splice protector 10-60 mm
Splice data storage max. 3000
Fiber magnification
  • 300x for X or Y single axis view
  • 180x for both X and Y dual-axis view
Display and camera 2 cameras,
4.1-inch color screen
Electrode life 5000 arc discharges
Power supply / battery AC 100-240 V, 50/60 Hz
5200 mAh battery
Dimensions 135 (W) x 149 (H) x 156 (D) mm
Weight 2 kg (w/o battery)
