Aditeg PS3030DD DC Power Suplly

Kategori: ADITEG | Dilihat: 88 Kali
Harga: Rp 3.250.000 Rp 3.500.000
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Kode Produk: Aditeg PS3030DD Stok Tersedia - 08-05-2024
Detail Produk

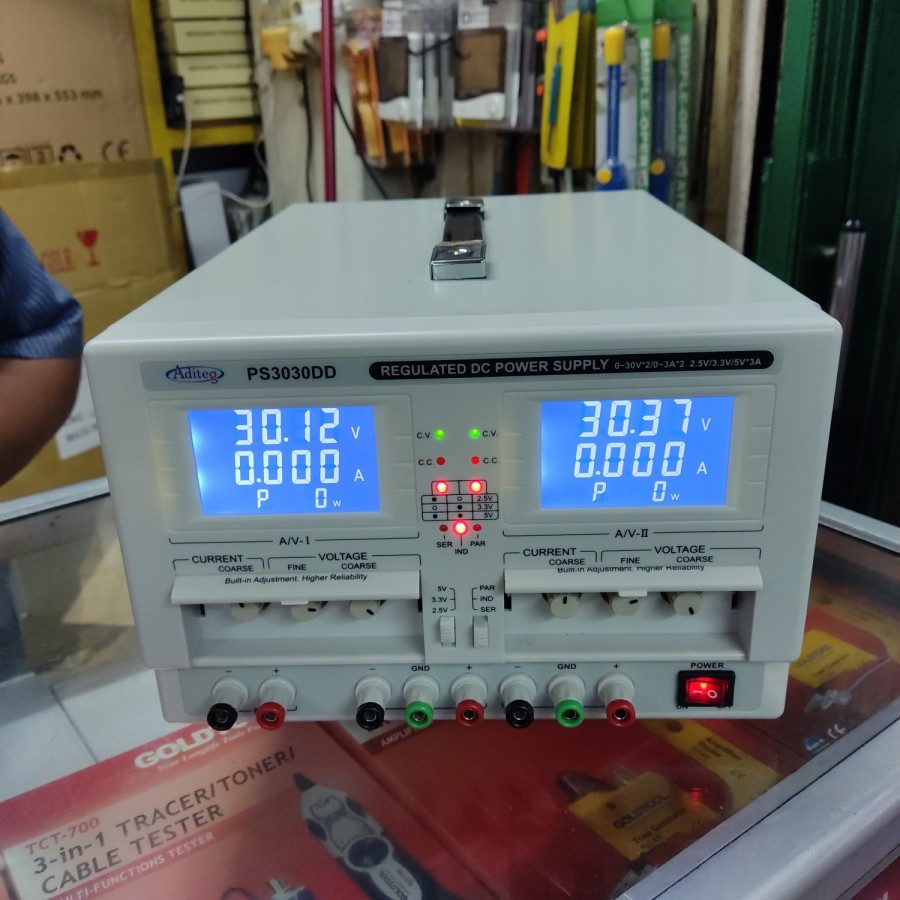

Aditeg PS3030DD DC Power Suplly 2 CH 0-30V/ 0-3A
This is double-channel regulated DC power supply
with a back-light LCD panel.
The voltage and current can be adjusted
continuously with Knobs that are hidden behind a
panel to provent accidental movement.
Two channels-canbe run series,parallel function or
independently from each other.
CH3 is a fixed output with three settings 2.5V,3.3V
and 5V.
They are used in product research departments,
laboratories,electronic production lines,and also in
the communications industry.

Technical Specifications :
Rated Output Voltage
CH1 : 0-30V
CH2 : 0-30V
CH3 : 2.5V/3.3V/5V
Rated Output Current
CH1 : 0-3A
CH2 : 0-3A
CH3 : 3A
Rated Output Power 195 W
Voltage Display Accuracy 5 % rdg + 2 byte
Current Display Accuracy 5 % rdg + 2 byte
Stabilily of Voltage 0.01%+2mV
Stabilily of Load 0.01%+5mV
Ripple & Noise 1mVrms
Work Method Constant Current , Constant-Voltage
Power Stability 0.01 % + 1 mV
Protection Method Current-limited lower voltage protection
Short Circuit Protection
Over Temperature Protection
Environment Parameters Relative humidity 80 %
Temperature Range 32-104 F
Cooling model Fan

Dimension 370(L)x250(W)x160(H)mm
Power : AC Input Voltage AC 220 V
Weight 10 Kg

Jual Aditeg PS3030DD DC Power Suplly 2 CH 0-30V/ 0-3A dengan harga murah hanya di CV.MITRA LASER dan tentunya dengan barang 100% Original.
Pemesanan Aditeg PS3030DD DC Power Suplly 2 CH 0-30V/ 0-3A bisa di kirim ke seluruh Indonesia dengan system pembayaran Untuk Luar Kota ( Jakarta ) Transfer. Khusus untuk Wilayah Jakarta Pembayaran bisa COD ( Cash On Delivery )
Untuk info harga terbaik silahkan hubungi : 081398390838 / 08112348415 ( WA : 08112348415 )
Bila membutuhkan Penawaran Harga silahkan di email ke : mitralaserstore@gmail.com
