Ultrasonic Flow Meter TUF2000B 50-700mm TM-1 ORIGINAL
Ultrasonic Flow Meter TUF2000B 50-700mm TM-1
Liquid Flow Meter mengukur laju aliran atau jumlah fluida yang bergerak mengalir
Cairan yg bisa diukur: air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll
Mengukur laju cairan dengan metode ultrasonik. Dengan Transducer kedap air kelas IP98, dan unit kedap air kelas IP67.
Features:
- Multiple Instalation Methods: Wall mounting and Two ways of Din-rail mounting
- IP67 protection
- DN50mm-DN700mm TM-1 Transducer

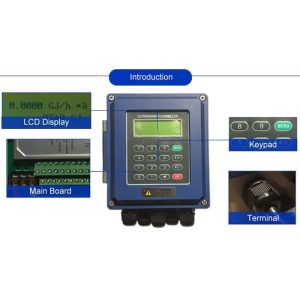

Introduction:
TUF-2000B Flowmeter can be applied to a wide range of long-term online measurement.

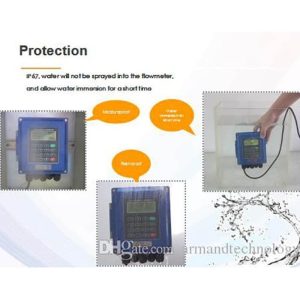

Convertor protection class IP67, transducer protection class IP98.
A variety of liquid applications can be accommodated: ultra-pure liquids, portable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant, etc
Working Environment
Main Unit Transducer
Protection Level IP67 IP68
Humidity 85%RH
Temperature -20~60 -30~160
Basic Parameters
Accuracy 1%
Velocity range 0~10m/s, Bi-directional measurement
Pipe size DN50~DN700mm
Temperature -30~160
Type of liquid Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Pipe material Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

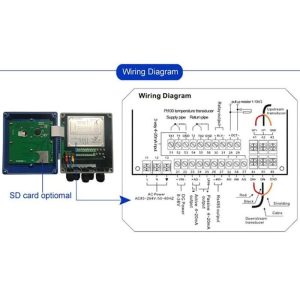

Signal output
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output
Ultrasonic Flow Meter TUF2000B 50-700mm TM-1[/caption]
Signal input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Data storage SD card regularly store the pre-set results(optional)
Power supply DC8~36V or AC85~264V
CV.MITRA LASER bergerak dalam bidang penjualan Alat Survey, Digital Instrument, GPS (Global Positioning System), Surveying Instruments, Hidrologi dan Klimatologi, Test and Measurement, Radio Komunikasi dan Satelite Communication, Telecommunication, Peralatan Marine/Kelautan, Alat Teknik, Alat Ukur/Uji Beton, Perkakas dan Peralatan Geologi.
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
