Ultrasonic Flow Meter TUF-2000B 15-100mm TS-2 ORIGINAL
Ultrasonic Flow Meter TUF-2000B 15-100mm TS-2
Liquid Flow Meter adalah alat untuk mengukur laju atau jumlah cairan yang mengalir
Jenis cairan yang bisa diukur: air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll
Memiliki Transducer yang kedap air kelas IP98, dan unit yang kedap air kelas IP67.
Features:
- Multiple Instalation Methods: Wall mounting and Two ways of Din-rail mounting
- IP67 protection
- DN15 - 100mm TS-2 Transducer

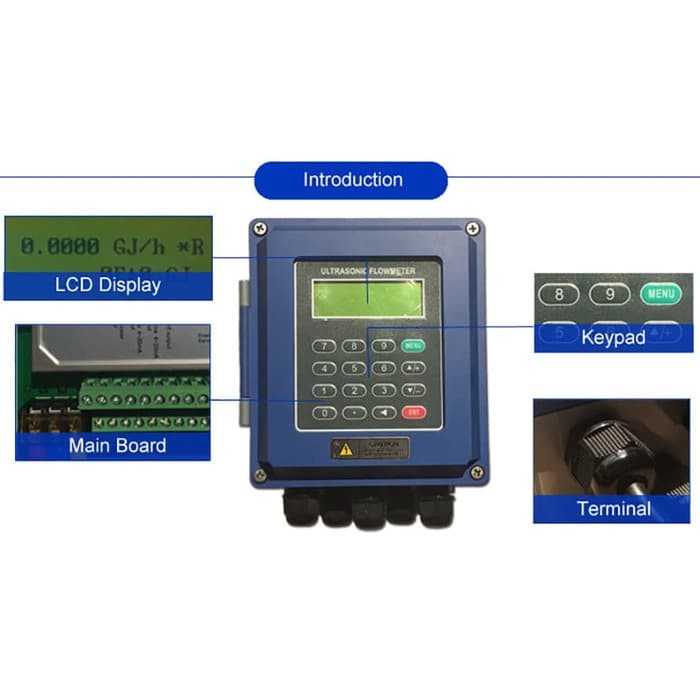

Introduction of Ultrasonic flow meter:
TUF-2000B Flowmeter can be applied to a wide range of long-term online measurement.
Convertor protection class IP67, transducer protection class IP98.
A variety of liquid applications can be accommodated: ultra-pure liquids, portable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant, etc
Working Environment
Main Unit Transducer
Protection Level IP67 IP68
Humidity 85%RH
Temperature -20~60 -30~160
Basic Parameters
Accuracy 1%
Velocity range 0~10m/s, Bi-directional measurement
Pipe size DN 15 to 100 mm
Temperature -30~160
Type of liquid Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc
Pipe material Steel, stainless steel, cast iron, copper, PVC, aluminum, glass steel, etc. Liner is allowed.

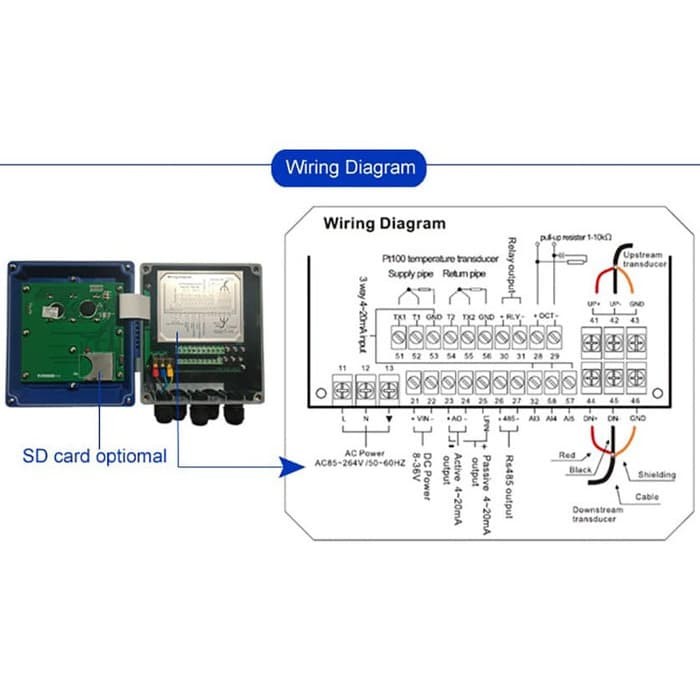

Signal output
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output

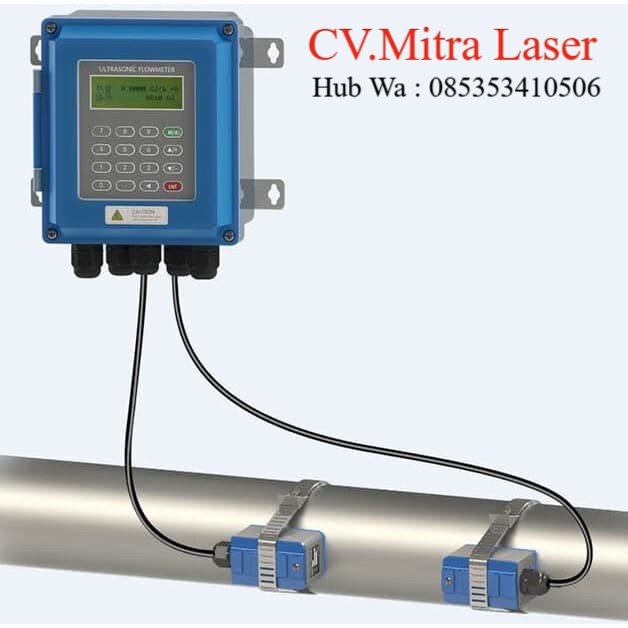

Ultrasonic Flow Meter TUF-2000B 15-100mm TS-2[/caption]
Signal input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Data storage SD card regularly store the pre-set results(optional)
Power supply DC8~36V or AC85~264V
