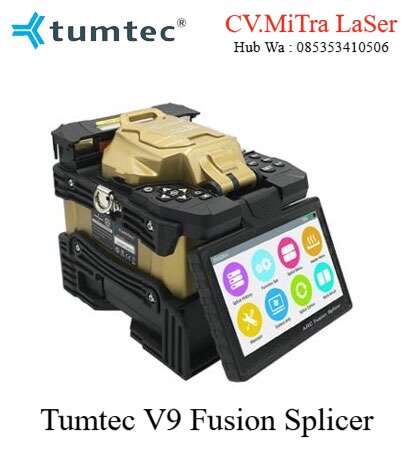

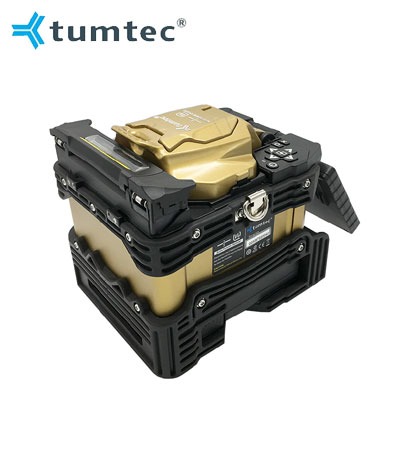

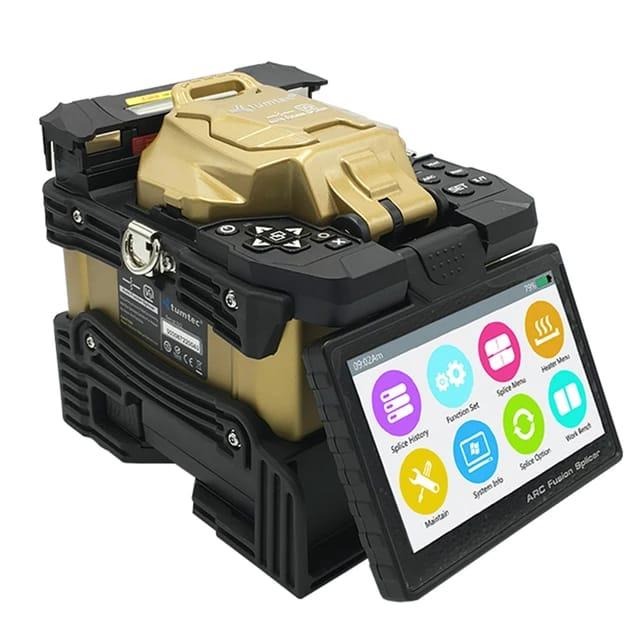

Tumtec V9 Fusion Splicer
Fusion Splicer Tumtec V9
Tumtec V9 Fusion Splicer yang paling kuat dan cerdas serta mengadopsi teknologi pelurusan inti. Ini memiliki CPU Quad-core tingkat industri (Terutama 1,4 GHz), menampilkan biaya daya rendah dan kinerja tinggi, dilengkapi dengan layar sentuh LCD warna 5-Resolusi Tinggi untuk pengoperasian yang mudah, mencapai pembesaran industri 500X sehingga kondisi serat dapat dengan mudah diperiksa dengan mata telanjang. Ini juga menyediakan baterai berkapasitas tinggi 10200mAH untuk bekerja lebih jauh di lapangan, yaitu 340 splicing / siklus pemanasan. Teknologi inovatif membawa kenyamanan tanpa batas. Dengan kinerja yang sangat baik dan stabil, V9 telah menjadi salah satu fusion splicer paling andal dan efektif di pasar global.
Fitur :
-Layar Touch screen
-Hasil Splice Bagus setara produk jepang
-Free SOC holder ( splice on Connector ) ready
-Support for Backbone cable dan FTTx
-Booting Fast , splice 6 detik ,heating 12-15 detik
Specifications Tumtec V9 Fusion Splicer
| Equipment Parameters | |
| Model | V9 Mini |
| Dimension | 135W x 160L x 135H (excluding rubber bumper) / 140W x 165L x 135H (including rubber bumper) |
| Weight | 2250g (with battery) / 1870g (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Compatible Fiber/Cable | 0.25 – 3.0mm/Indoor Cable |
| Cleaved Length | Diameter : 0.125 – 1mm/Cleave Length : 8 – 16mm |
| Cladding Diameter | 80 – 150µm |
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes |
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
| Typical Splice Loss | SM : 0.02dB / MM : 0.01dB / DS : 0.04dB / NZDS : 0.04dB / G.657 : 0.02dB (ITU-T Standard) |
| Return Loss | ≥ 60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 6s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20 – 60 mm |
| Heating Time | Quick heating time : 13s, typical heating time : 30s |
| Results Storage | 20000 latest records & 200 images |
| Tension Test | 1.96 – 2.25N |
| Operating Condition | Operating Altitude : 0 – 5000m above sea level, 0 – 95% relative humidity, -10 to 50°C, max wind 15m/s |
| Storage Condition | 0 – 95% relative humidity, -40 to 80°C |
| Display | 90° bi-directional view, 4.3” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 480X Magnification |
| Power Supply | AC Input 100 – 240V, DC Input 12 – 15V |
| No. of Splice/Heating with Battery | 5200mAh Battery Capacity, Typical 250 times (Splice + Heat) |
| Operating Methods | Button/Touch Screen |
| Automatic Calibration | Automatic ARC Calibration by air pressure and temperature |
| Electrode Life | 5000 ARCs |
| Terminal | Mini USB 2.0 |

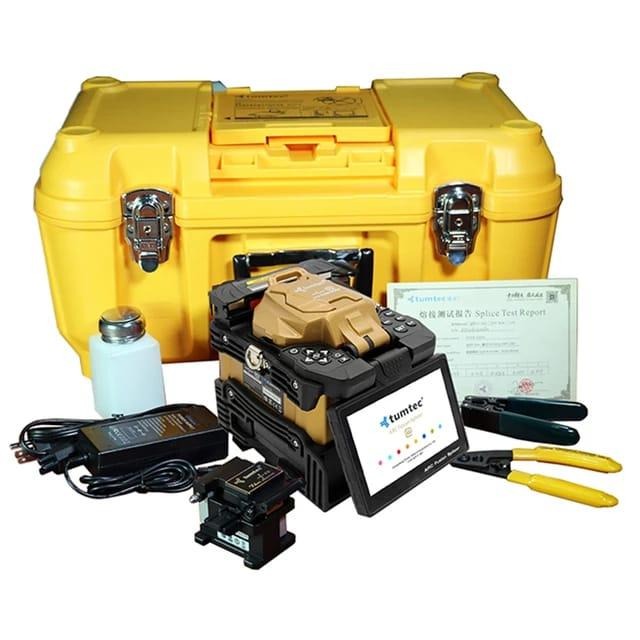

| Standard Accessories | Fusion Splicer V9 Mini (1 set) Fiber Cleaver (1 set) Battery (1 set) Power Adapter (1 set) AC Power Line (1 set) Back-Up Electrode (1 set) Cooling Tray (1 set) Carrying Case (1 set) Carrying Strap (1 set) User Manual (1 set) Splicing Test Report (1 set) Fiber Stripper (1 set) Drop Cable Stripper (1 set) Alcohol Bottle (1 set) |
