Terlaris SAMYUNG SI-70A Class A AIS Transceiver Original
The SAMYUNG SI-70A Class A Transceiver
is a high-performance radio communication device designed for various applications, including amateur radio, emergency communications, and professional use. It offers reliable and efficient transmission and reception capabilities, making it a popular choice among radio enthusiasts and professionals alike.
SAMYUNG SI-70A Class A Transceiver
The SAMYUNG SI-70A Class A Transceiver is a cutting-edge marine communication device designed for seamless and efficient communication at sea. Offering compliance with global maritime safety standards, this transceiver is an indispensable tool for any seafaring vessel. In this article, we’ll explore the key features, advantages, and uses of the SAMYUNG SI-70A, making it a must-have for your maritime operations.
[caption id="attachment_6557" align="alignnone" width="150"]

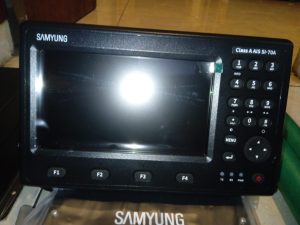

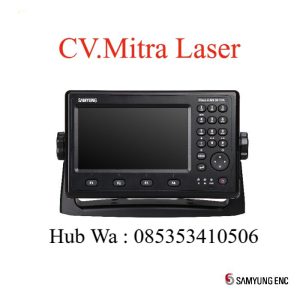

SAMYUNG SI-70A[/caption]
Features
- Compliant with IEC61993-2 Ed.2.0 / IEC61162-1 Ed.5.0 / IEC62288 Ed.2.0 / ITU-RM.1371-5 / ITU-RM.493-14 / ITU-RM.825-3 / IMO Resolution MSC.74(69) / IEC60945 Ed 4.0 / IEC61108-1 / IEC61108-2, and the latest international regulations
- Isolated power supply voltage 11~36V (built in reverse prevention circuit)
- Two additional RS-232 outputs (built in protection circuit)
- Easy setting up at boot time and convenient keyboard.
- Various target ship alignment method (MMSI, distance, bearing descending/ascending order)
- Searching target ship with Ship name, MMSI
- Korean, Chinese, English, Russian menu option
- Day/Night time display mode
- Auto speed detection and checking of external sensor input
- Upgraded Self-diagnosis function / Internal fault diagnosis system for continuous diagnosis
- Easy software upgrade by using SD card (1G~16G available)
Specifications
POWER |
|
| AIS Unit DC IN | 12V (RX:0.9A/TX:5.2A)/24V (RX:0.5A/TX:2.5A) |
| AC/DC Unit (SP-70AD) AC IN | 100~230V AC, 47~63 Hz DC OUT: DC 24V / 6.3A |
TRANSCEIVER |
|
| TX/RX Frequency Range | 156.025 ~ 162.025 MHz |
| Default Frequencies | AIS1 (CH 87B) = 161.975 MHz(F1D) AIS2 (CH 88B) = 162.025 MHz(F1D) DSC (CH70 fixed) = 156.52 M5Hz(G2B) |
| Power Output | 12.5W (41dBm±1.5dB / 8.91W~17.78W) or 1.0W (30dBm±1.5dB / 0.7W~1.41W) |
| Antenna Impedance | 50 ohms (SO-239) |
| Sensitivity (AIS RX) | PER < 20% at -107 dBm |
| Sensitivity (DSC RX) | BER <10-4 at -107 dBm |
DISPLAY |
|
| LCD | 7-inch TFT color, 800 x 480 |
INPUT/OUTPUT COMMUNICATION |
|
| SENS1/2/3 | IEC61162-1/2 (input only) |
| LONG/AUX/PILOT | IEC61162-1/2 (input & output) |
GNSS ANTENNA / RECEIVER |
|
| Antenna | GNSS-70 (PATCH ANTENNA / TNC / RG-58U / Gain:17dB) |
| Receiver | 72-channel u-blox engine / GPS / QZSS / GLONASS / BeiDou / Galileo / WAAS, EGNOS, MSAS |
VHF |
|
| Model Name | SAN-150 (2dBi) |
| Connector Type | Standard female UHF |
| Frequency Range | 156-162 MHz, VSWR < 1.5:1 |
| Impedance | 50 ohm |
| Output Range | 100W |
ENVIRONMENT |
|
| Standards | IEC 60945 (EMC, Dry heat, humidity, low temperature, vibration, corrosion, compass safety distance etc.) |
| Antenna Operation | -30°C to +70°C |
| Main Body Operation | -15°C to +55°C |
| Storing Temperature | -25°C to +75°C |
DIMENSION |
277 x 108.8 x 175.5 mm |
WEIGHT |
2.5 kg |
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
