SANWA PC7000 DIGITAL MULTIMETER Original

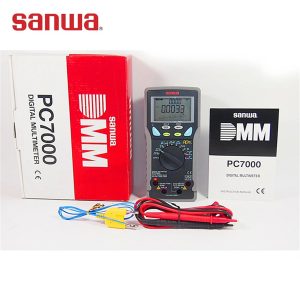

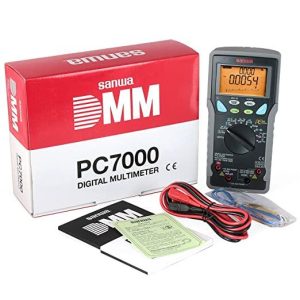

SANWA PC7000 DIGITAL MULTIMETER
Fitur :
4-4 / 5digits 50000 count
(Selectable 5-4 / 5 digits 500000 count for DCV)
Dual Display shows voltage/current and its
frequency, and AC components and DC
components of voltage/current
AC True RMS
Low-pass filter for variable frequency drive(VFD) circuit
Current (mA / A) %4-20mA measurement
Capture (peak hold) 0.8ms in duration
MAX, MIN, AVE recording mode
K type temperature -501000
Optional accessory K-AD is necessary.
K type temp. sensor K-250PC is included as a standard accessory.
Frequency measurement (AC sine wave only)
Logic frequency measurement, duty cycle
measurement
Conductance measurement
Dual display with backlight
Data hold, Range hold
Relative value
Auto power saving mode (30min.) (cancelable)
Optical Link USB interface (optional)
Display : numeral display 50000 & 500000 selectable, bar graph 41 segments
Sampling rate : 5 times/sec. for 50000 count, 1.25 times/sec. for 500000 count, 60 times/sec. for bar graph
Battery life : Approx. 100h (alkaline battery) at DCV range
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
