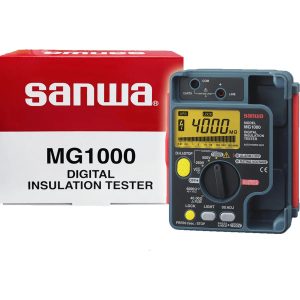

Sanwa MG1000 Digital Insulation Tester Original
Jual Sanwa MG1000 Digital Insulation Tester Made in Japan
●Test voltage DC1000V/500V/250V
●Bargraph just like analog meter
●Short circuit current up to 2mA
●Large display with backlight
●Auto discharge function
●Data hold(Auto)
●Auto power save: Power save about 10 minutes after the last operation

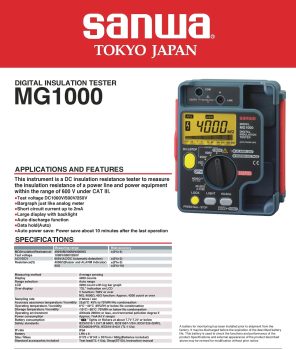

APPLICATIONS AND FEATURES This instrument is a DC insulation resistance tester to measure
the insulation resistance of a power line and power equipment within the range of 600 V under CAT III.
Test voltage : 1000V/500V/250V
ACV/DCV : 600V(AC/DC Automatic detection)
MΩ(InsulationResistance)
4M/40M/400M/4000MΩ
Resistance(Ω)±(3%+4), ±(3%+2), ±(3%+3), ±(3%+10)
4000Ω(Buzzer and ALARM indicator)
40Ω
Average sensing
4200 counts
Auto range
4200 count with log bar graph
“OL” indication on LCD
V function: 780V or over
MΩ, 4000Ω, 40Ω function: Approx. 4200 count or over
2 times / sec
23±5℃ 45% to 75%RH No condensation
0℃40℃ 85%RH or below No condensation
-10℃50℃ 70%RH or below No condensation
Altitude 2000m or less, environmental pollution degree II
Approx. 7mA(At V range)
H170 x W142 x D57mm
Standard accessories included
* Test Lead TL-112a
* Strap ST-50
* Instruction Manual
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
