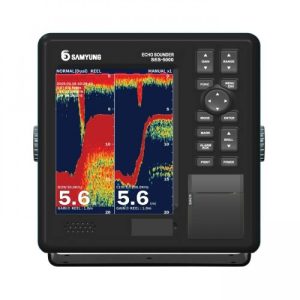

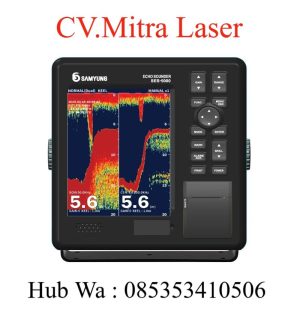

SAMYUNG SES-5000 Navigational Echo Sounder ORIGINAL
The SAMYUNG SES-5000 Navigational Echo Sounder
is more than just a depth gauge. It is an essential tool for anyone navigating at sea, offering accurate, real-time depth readings and enhancing maritime safety. With its durable construction, easy-to-use design and high-sensitivity transducer, the SES-5000 stands out as one of the best navigation aids available today. Whether for commercial or recreational use, this echo sounder is a reliable and cost-effective solution for all your depth measurement needs.
SAMYUNG SES-5000 Navigational Echo Sounder
SAMYUNG SES-5000 Navigational Echo Sounder is an advanced marine device that plays a vital role in providing accurate depth measurements. This advanced equipment is designed to improve the safety and efficiency of marine navigation by providing precise information about underwater terrain and obstacles. Whether you’re navigating shallow waters or conducting offshore operations, the SES-5000 is an essential tool for any vessel.
Features
- 4” Wide Color LCD
- 24 Hours Desinated Depth
- Built in Thermal Printer
- User Friendly Menu
- IMO Standards MSC.74 (69) Annex 4
SAMYUNG SES-5000[/caption]
Specifications
DISPLAY |
|
| Display | 10.4” Color LCD (600 x 800 pixel) |
| Frequency | 50KHz / 200KHz |
| Output Power | 1kw, 1.5kw |
| Color | 8/16/64 colors, Background: Selectable among 5 colors |
| Range | 5, 10, 20, 50, 100, 200, 500, 800, 1000m |
| Depth Accuracy | ±2.5% |
| Minimum Sounding Depth | 50KHz: 1.7m, 200KHz: 0.6m |
| Draft | 0 – 50m |
| Display Mode | Single, Dual, Replay, Depth |
| Screen Speed | x4, x2, x1, x1/2, 1/4, 1/8, Stop |
| Alarm Function | Depth, Power Fail, System Error |
| Auto Display | Auto Gain (Fishing/Sailing), Auto Depth |
| Noise Reduction | Off, Light, Medium, Strong or Frequency Adjustment (range depends to transducer) |
| Replay Function (Data Storage) | 20hrs (30 secs save interval) |
| Time Mark | 30 secs |
| Software Version | 1.0.0 |
| Power Supply | Main: 100 – 220V AC, 50/60Hz ±5% Sub: 23 – 30V DC |
| Operation Environment | Temperature: Main Equipment -15°C to +55°C Humidity: Less than 93% (+30°C to +60°C) |
INTERFACE |
|
| Number of Port | NMEA0183 VER1.5/2.0/3.0(I/O)-2 port |
| Input Data | GGA, VTG, ZDA |
| Output Data | DBT, DBS, DPT, GGA, GLL, GSA, GSV, VTG, ZDA |
| Output Alarm SIgnal | Depth, Power Fail, System Error |
DIMENSION |
320 x 133 x 366.7 mm |
STANDARD EQUIPMENT LIST |
Main Unit (SES-5000) Installation Set Manual |
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
