SAMYUNG SAR-9 GMDSS Search and Rescue Transponder ORIGINAL
The SAMYUNG SAR-9 GMDSS Search and Rescue Transponder
is a vital tool for ensuring the safety of vessels and individuals at sea. Its reliable GMDSS technology, robust design and ease of use make it a must-have device for any vessel navigating open waters. Whether you are a commercial operator, recreational sailor or part of a rescue team, the SAMYUNG SAR-9 provides peace of mind and increases your preparedness for emergencies.
SAMYUNG SAR-9 GMDSS Search and Rescue Transponder
SAMYUNG SAR-9 is a Radar Transponder, which is operated in 9.2 ~ 9.5 GHz (3cm) marine radar band. When a radar signal is received from a SAR craft, the SAR-9 automatically starts to transmit a response signal echoing to that Radar. SAR craft can identify SART s location on the radar screen with 12 in-line dots. Once activated, the SAR-9 will remain in stand-by condition for 96 hours followed by minimum 8 hours transmission.
Features
- Complied with related IMO/GMDSS requirements
- Designed for reliable operation in the roughest of marine environments
- Lightweight and rugged construction is suitable for placing at life rafts.

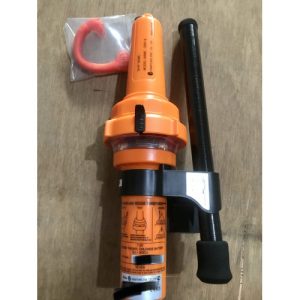

- Complete set with a life raft mounting kit
- Efficiently assisting ship or survival craft rescue operations

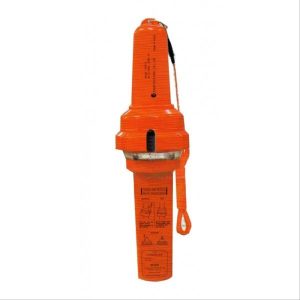

SAMYUNG SAR-9 GMDSS[/caption]
Specifications
| Frequency | 9.2 ~ 9.5 GHz |
| Polarization | Horizontal |
| Vertical Beam Width | +12.5 Degrees |
| Azimuthal Beam Width | Omnidirectional to ±2dB |
| Radiated Power | > 400mW (+26dBm) |
| Form of Sweep | Sawtooth (12 sweeps) |
| Pulse Emission | < 100µS |
| Forward Sweep Time | 7.5µS ± 1µS |
| Return Sweep Time | 0.4µS ± 0.1µS |
| Recovery Time | < 10µS |
| Response time | < 0.5µS |
| Effective Sensitivity | better than -50dBm |
| Duration of Operation | 96 hours in standby condition followed by a minimum 8 hours of transmission while being continuously interrogated by an X-band radar with a pulse repetition frequency of 1KHz at extreme temperatures |
| Battery Life | 5 years |
| Temperature Range | Operating -20°C to 55°C, Storage -30°C to 65°C |
