SAMYUNG NF700 Wide GPS Chartplotter + Fishfinder ORIGINAL

Kategori: Echosounder,GPS | Dilihat: 16 Kali
Harga: -
Tambah ke Wishlist

Pemesanan Juga dapat melalui :

Kode Produk: SAMYUNG NF700 5 - 13-11-2024
Detail Produk

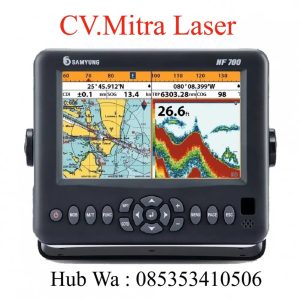

SAMYUNG NF700

The SAMYUNG NF700 Wide GPS Color Chartplotter + Fishfinder offers an exceptional blend of navigation and fishfinding capabilities, making it a valuable tool for all marine enthusiasts. The high-resolution display, accurate GPS and cutting-edge sonar technology ensure a superior boating and fishing experience. Whether you’re exploring new waters or targeting a successful catch, the NF700 provides the tools needed for a safe and enjoyable time on the water.

SAMYUNG NF700 Wide GPS Color Chartplotter + Fishfinder

The SAMYUNG NF700 Wide GPS Color Chartplotter + Fishfinder is an all-in-one solution that combines advanced navigation with powerful fishfinding capabilities. Featuring a large color display, accurate GPS and advanced sonar technology, this versatile device is designed to meet the needs of both recreational boaters and professional anglers. In this article, we will explore the key features and benefits that make the SAMYUNG NF700 a standout choice for marine enthusiasts.

Features
  • User-friendly operation type by using icon for each menu
  • NMEA0183 interface (AIS, NAVTEX, DSC etc.)
  • 4 split screens (Chart, Data, Highway, Fish-finder)
  • Using dual frequency (50/200Khz) for detection of small and individual fish
  • Clearly shows fish targets close to the seabed by
  • Split zoom/Split bottom (Output: 600W, Max. depth: 600M)

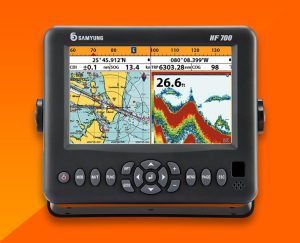

[caption id="attachment_6601" align="alignnone" width="150"]SAMYUNG NF700 SAMYUNG NF700[/caption]
Specifications
MODEL
NF700
Display Wide 7-inch, TFT color, 800 x 480 pixels
Supply Voltage 10 to 34V DC
Supply Current 13.8V, 0.8A min – no backlighting.
1A max – full backlighting.
Operating Temperature -10°C to 50°C
Alarms Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels
Chart Card NAVIONICS® GOLD
User Card SD Card
Waypoints 10,000 waypoints (Event Mark: 48, Mark Color: 16)
Routes 100 Routes, with up to 100 points each
Tracks By time or distance, 10 tracks of 5000 points
Chart Datums 216 Chart datums (see next page)
Chart Scale 0.2 to 500 nm
NMEA NMEA 0183
Frequency 50/200kHz
Output 600W
Depth Range Min: 0m – 3m; Max: 0m – 1500m
Color Display 16 colors
Brightness 10-step
Screen Moving Speed Super-Fast, Fast, Medium, Low, Stop
Battery Voltage Display Voltage Number Display
AUTO GAIN Adjustment OFF/ON
A-Mode Display OFF/ON
Demo Display OFF/ON
Weak Color Removal 0% – 75%
DIMENSIONS
171 (H) x 205 (W) x 75 (D) mm
STANDARD EQUIPMENT LIST
Main Unit
GPS Antenna
Transducer
Installation Materials
Spare Parts
Manual
