Process Calibrator Hart Modbus LB06 Signal Generator Source Function

Process Calibrator multifungsi ini memiliki bentuk yang ringkas, kokoh, dan mudah digunakan.
Dapat berfungsi sebagai Signal Generator, Process Calibrator, dan Digital Multimeter
Mendukung standar MODBUS Master, MODBUS Slave, komunikator/operator Hart

Features Process Calibrator LB06

• Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.
• High accuracy 0.025%+1/2 digits, high reliability and stability.
• Signal output & simulation: 0/4-20mA source or passive, 0-11V, 0-110mV, 20-400Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, frequencies, etc.
• Measurement: 0-30V, 0-150mV, 0-999.9Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, Ohm, frequency etc.
• Support standard MODBUS Master, MODBUS Slave, Hart communicator/operator.
• High resolution LCD display, have back light for different lighting conditions, large screen clear display.
• Fast response, no delay in signal source simulation and signal testing or measurement.
• Have charging and status indicator to check the battery status easily.
• Can be used as signal generator, multifunction process calibrator and digital multimeter.
• Have description in V, mV, mA, RTD, TC, Step, , Hz, MODBUS, Hart keys, it enables user to operate it easily.
• DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.
• AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability
• Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.

Output Function

FUNC	OUT UNIT	SET  RANGE	SET STEP	ACCURACY
DC.V	V	0~11.00V	0.01/0.1/1	0.025%+1
DC. mV	mV	0~110.00mV	0.1/1/10	0.025%+2
Ω	Ω	20~400Ω	1/10/100	0.025%+0.3Ω (0.2-3mA excitation current, lead resistance is not included)
DC. mA	mA	0~24.00mA	0.01/0.1/1/4	0.025%+1 (active, passive, other programmable current signal output.)
TC	R	0~1700℃	1/10/100	0.1%+3
	S	0~1600℃		0.1%+3
	B	500~1800℃		0.1%+3
	K	-200~1370℃		0.1%+1
	E	-200~1000℃		0.1%+1
	J	-200~1200℃

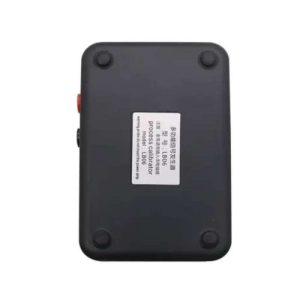

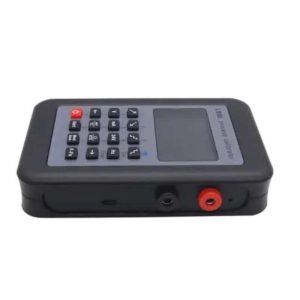

[caption id="" align="aligncenter" width="600"] Process Calibrator Hart Modbus LB06 Signal Generator[/caption] [caption id="" align="aligncenter" width="700"] Process Calibrator Hart Modbus LB06 Signal Generator[/caption]

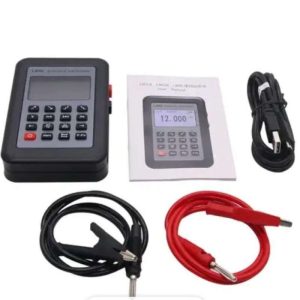

Packing contents:

• LB06 Process Calibrator
• Pen Probes
• USB Cable
• User Manual
• Pouch

[caption id="" align="aligncenter" width="600"] Process Calibrator Hart Modbus LB06 Signal Generator[/caption]
