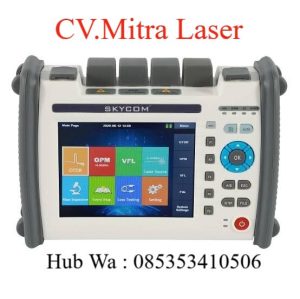

OTDR Skycom T750 32Db Original

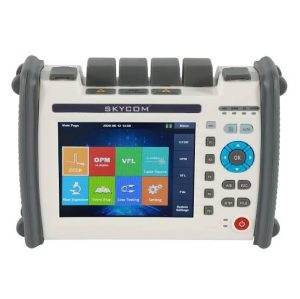

OTDR Skycom T750
OTDR FLASHINE Skycom 32 DB
Jarak jangkau sampai 100km
Fitur OTDR, OPM, VFL, OLS, Event Map
T-OT750 series tester adalah alat ukur serat optik komprehensif yang dikembangkan oleh Skycom, untuk menyelesaikan pengukuran berbagai parameter serat optik. Ini terutama MENGGUNAKAN fungsi OTDR dan memiliki fungsi pengukuran umum lainnya. Benar-benar tercermin: SATU MESIN, MENGUJI SEMUA!
Main parameter characteristics :
1. Touch-sensitive and solid physical button work together for perfect user experience
2. Excellent for short-range measurement,Dead zone:0.8m/4m
3. Maximum sampling resolution:5cm
4. Support multiple analysis functions on testing results:Segment return loss,Event point return loss,Multi curves comparison, quick screen shots.
5. Complete user data interface:USB(Type A),MINI USB,SD card
Model No. Wave Length(nm) Dynamic Range(dB) Deadzone(M)
T-OT750-SM35 1310/1550/850/1300 35/32/22/26 SM:0.8/4 MM:2/5
Model Specification.
| Model No. | Wave Length(nm) | Dynamic Range(dB) | Deadzone(M) |
| T-OT750-S-A32 | 1310/1550 | 32/30 | 0.8/4 |
Parameter
| Pulse Width | SM | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
| Test Range | SM | 100m,500m,2km,5km,10km,20km,40km,80km,120km,160km,240km |
| Minimum sampling resolution | 0.05m | |
| Maximum sampling point | 256,000 | |
| linearity | ≤0.05dB/dB | |
| Loss resolution | 0.001dB | |
| Distance resolution | 0.01m | |
| Distance accuracy | ±(1m+Range×3×10-5+Sampling resolution) (Regardless of the refractive index) | |
| Result Storage | >16G SD card(Maximum support 128G),Store more than 100000 pieces of data | |
| Complete user data interface | USB(Type A),MINI USB,SD card | |
| Monitor | 5.6 “TFT LCD 640 * 480 | |
| Battery | 7.4V/2500mAh X 2 lithium battery(Aviation certification) | |
| Working temperature | Working temperature:-10ºC~+50ºC;Storage temperature:-20ºC~+70ºC | |
| Relative humidity | ≤95%(No condensation) | |
| Size and weight | 215×155×68mm/1.1kg(Including 2 batteries) | |
| VFL | 10KMS, 10mW,CW/2Hz | |
| OPM | Option A:-10dBm~-70dBm; Option B:+23dBm~-50dBm | |
| Laser source | Output:-5dBm±2dB,Frequency:CW/270Hz/1KHz/2KHz | |
| GPS/GNSS | Customized | |
| WIFI/Bluetooth | Customized | |

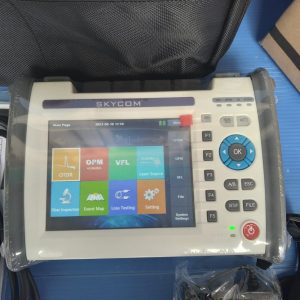

Kelengkapan
Bag, Unit, Charger, Adaptor, Stylus, CD Manual

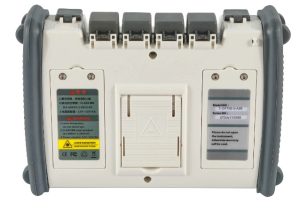

OTDR Skycom T750[/caption]
