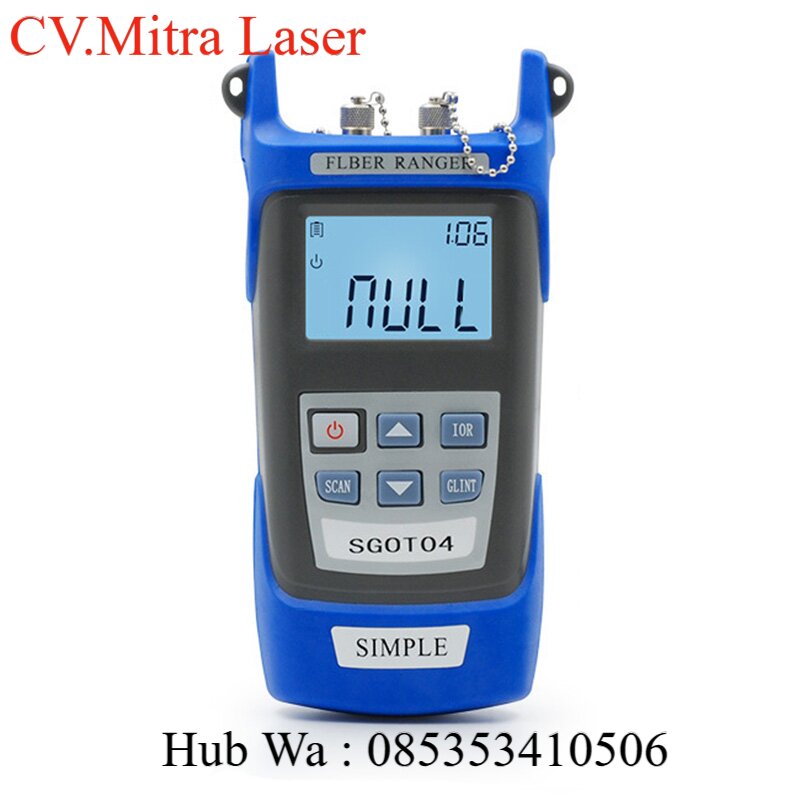

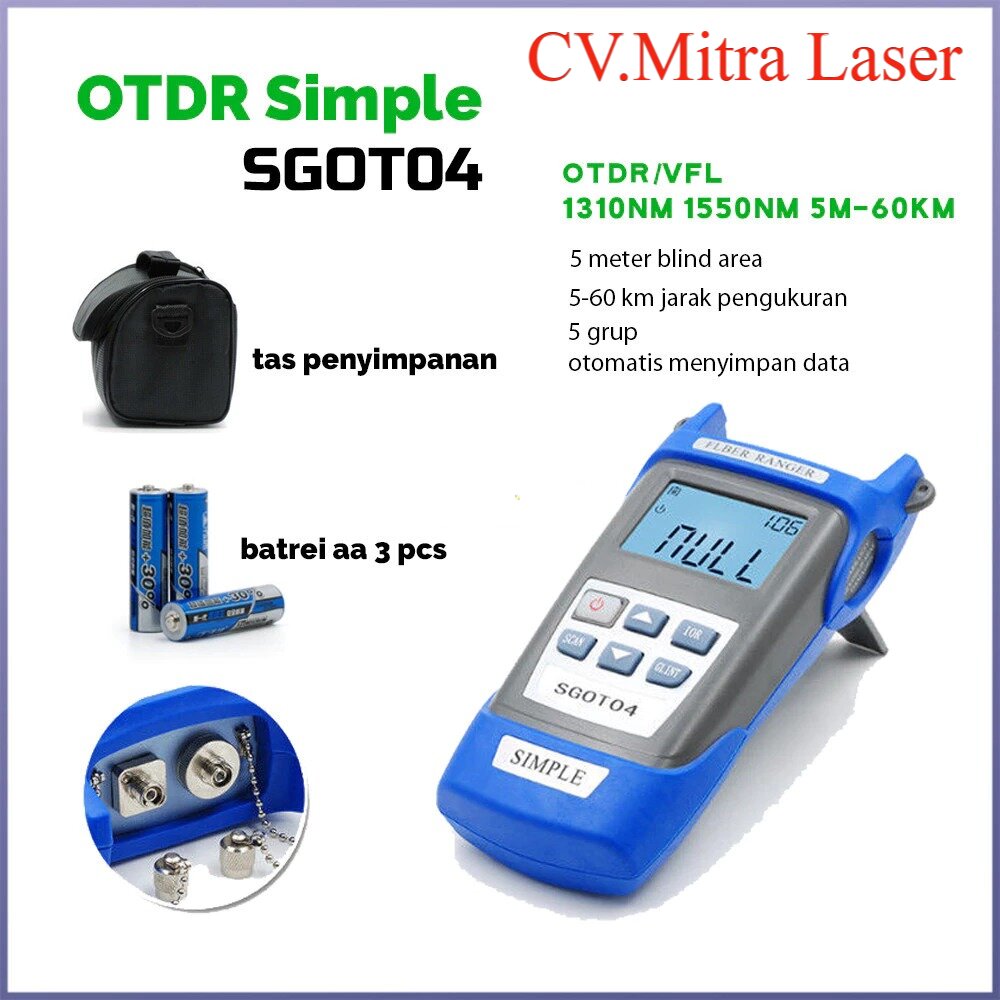

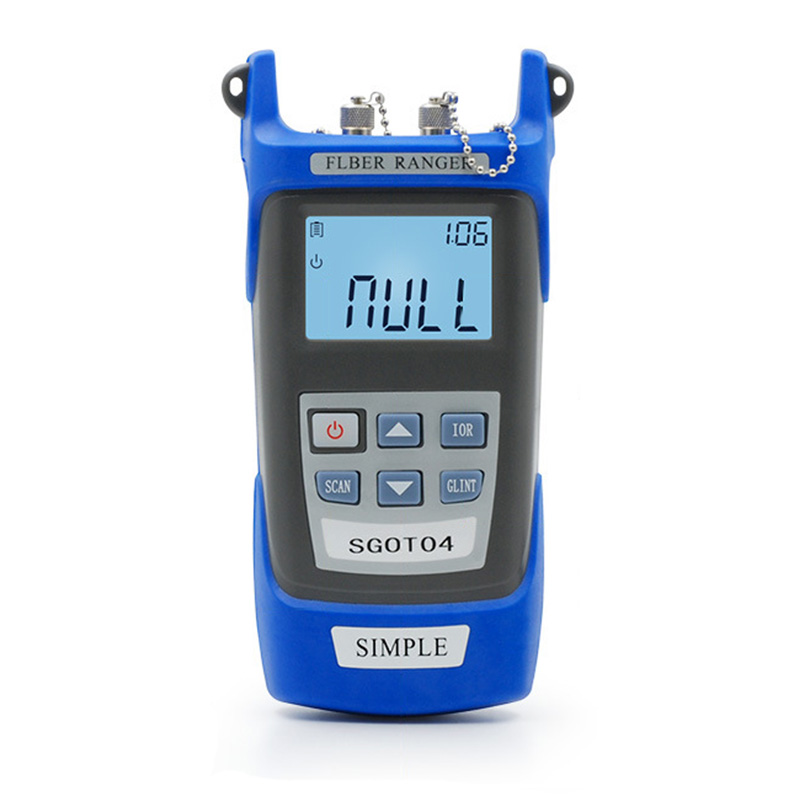

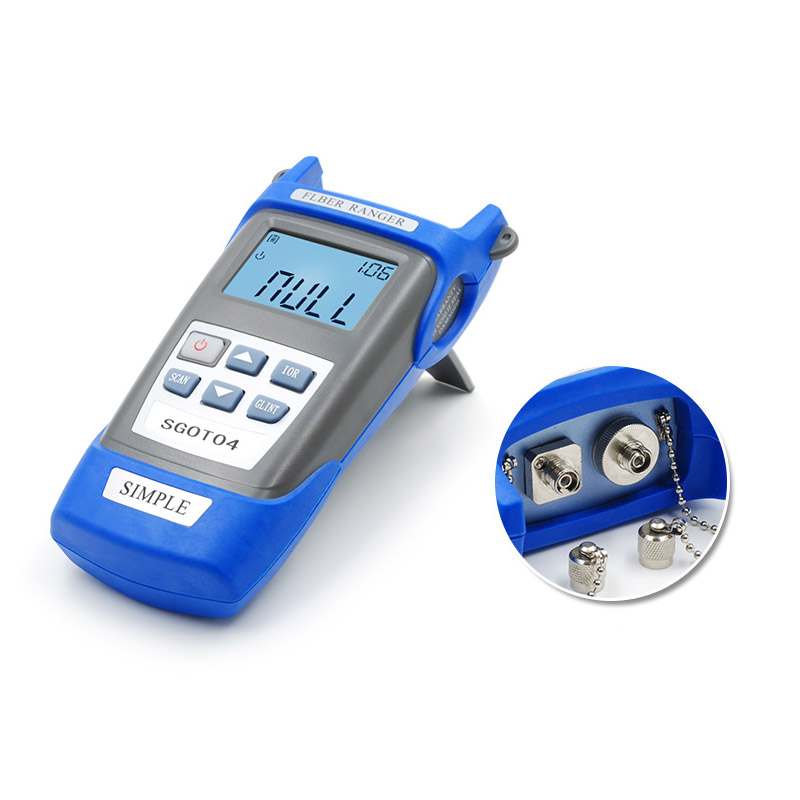

OTDR Mini FIBER RANGER SIMPLE SGOT04 ORIGINAL
OTDR Mini FIBER RANGER SIMPLE SGOT04
Ranger Serat Optik Jaringan FTTx SGOT04 Genggam OTDR Alat Pengukur Tester Prinsip Optik OTDR Mini untuk Peralatan FTTH.

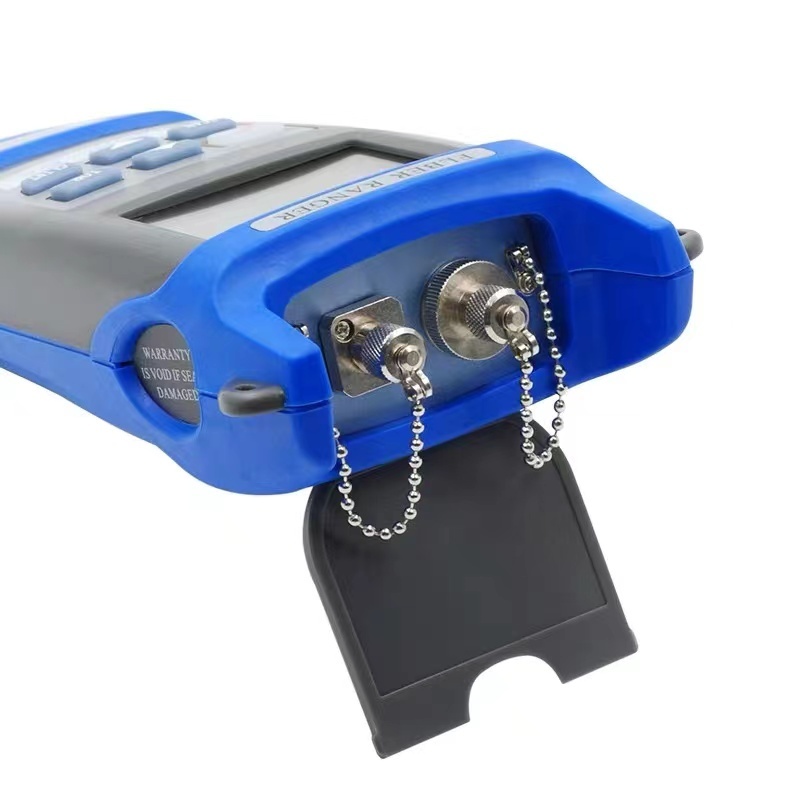

WL 1310/1550 nm, konektor fc. sc. st
Sensor ingaas
Jarak reflection 60km (>=1db)
Non-reflektive 20km(>=2.5db)
Reflektion time dead zone 15m
Vfl 1mw 650nm
tanpa grafik
Baterai 3*.5v aa (tdk disertakan)
Berat tanpa baterai 350 g
* Akurasi +- 2m+10^-4*Jarak
contoh jarak hasil scan 10.000 (10km) = 2+10^-4*10000 = 4
breakpoint antara 9.996m sd 10.004m
the lightest in the industry to find a fiber-optic instrument barrier, using OTDR principle, integrated powerful analysis software, it can quickly and accurately detect the location and type of fiber optic cable fault points.
main feature:
Thin, light and small size, light weight, easy to carry.
uses a lithium-ion battery, long standby time.
With a memory function, and can store 1000 data, you can import the data into a computer.
Reliable and repeatable.
One-button operation, without complex settings, test results at a glance.
You can easily test a fiber link node length and fault location.
Integrated visual fault locator system, can be easily detected in the blind spot fiber fault location.
OTDR Mini FIBER RANGER SIMPLE SGOT04[/caption]
