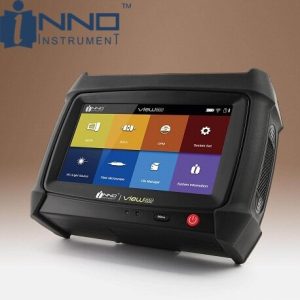

OTDR INNO VIEW 600 (M10) ORIGINAL
OTDR INNO VIEW 600 (M10) High Performance Modular
OTDR Inno View 600 digunakan dalam pemasangan dan pemeliharaan kabel serat optik.
Inno VIEW600 menawarkan hasil pengujian yang akurat dan cepat serta membuat laporan secara otomatis. VIEW600 dilengkapi dengan CPU kelas industri untuk membuat dan menyimpan hasil pengujian.
FITUR
OTDR INNO VIEW 600:
13 Modules Applicable
SOLA (Smart Optical Link Analyzer)
7″ Touch Screen
8GB Internal Storage
- Kemampuan uji presisi tinggi
- Waktu respons yang cepat
- Pengoperasian yang mudah dipelajari
- Layar sentuh kapasitif multi-titik memungkinkan pengoperasian yang mudah digunakan.
Specification Overview INNO VIEW600
Display Size : 7 inches, High Brightness TFT LCD, resolution of 800×480
Distance Units : m / km / mile / ft
Range Settings : 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km
Pulse Widths : 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
Linearity : 0.03dB
Resolution : 0.04m ~ 10.24m
Sampling Points : 256,000 points
Output Power : 20mW
Dimensions
Size (HWD) : 6.25H x 8.58W x 2.75D inches
Weight : 3.75pounds (1.70kg with battery)
TECHNICAL SPECIFICATIONS
- Model View600
Display : 7 inches, High Brightness TFT LCD, resolution of 800×480
Distance Unit : m/km/mile/ft
Range Setting : km 0.1, 0.3, 0.5, 5, 10, 20, 40, 80, 120, 160, 260, 320 | mile: 0.06, 0.19, 0.31, 0.81, 1.55, 3.11, 6.21, 12.43, 24.86, 49.71, 74.56, 99.42, 161.6, 198.8
Pulse Width : 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, Tus, 2.5us, Sus, 10us, 20us
Distance Accuracy : ± (1.0m + distance x 2.5 x 10 + sampling resolution)
Linearity : 0.03dB
Sampling Points : 256,000
Refractive index : 1.000000 – 2.000000 (step: 0.000001)
Splitting Ratio : Up to 1:128 splitter
Resolution : 0.04m ~ 10.24m
Loss Readout Resolution : 0.001 dB
Battery Capacity : Operating Time: Up to 12 hours
File Format : SOR, SOLA, PDF, BMP, JPG
External Connection : USB 2.0 x 2
Compatible Connector : APC (FC, SC, LC), UPC (FC, SC, LC, ST)
Power Supply : AC Input 100-240V 50-60HZ / DC Input 19V 3.42A, Port: 2.5mm ferrule type
VFL : Wavelength: 650m ± 10nm, Distance: Up to 10km, Ouput Power: 20mW
Light Source Ouput Power : -6dBm, Port: SC, FC, ST (interchangedble)
OPM : Wavelenght calibration: 850/1300/1310/1490/1550/1625nm
Dimension : 159 x 218 x 70 mm (excluding rubber bumper)
Weight : 1.70kg (with battery)
OTDR INNO VIEW 600 (M10)[/caption]
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
