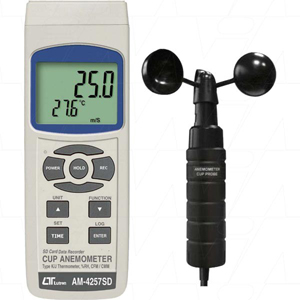

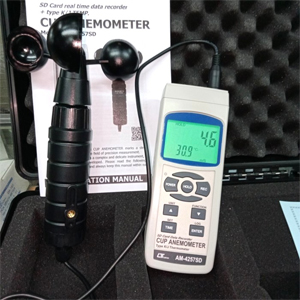

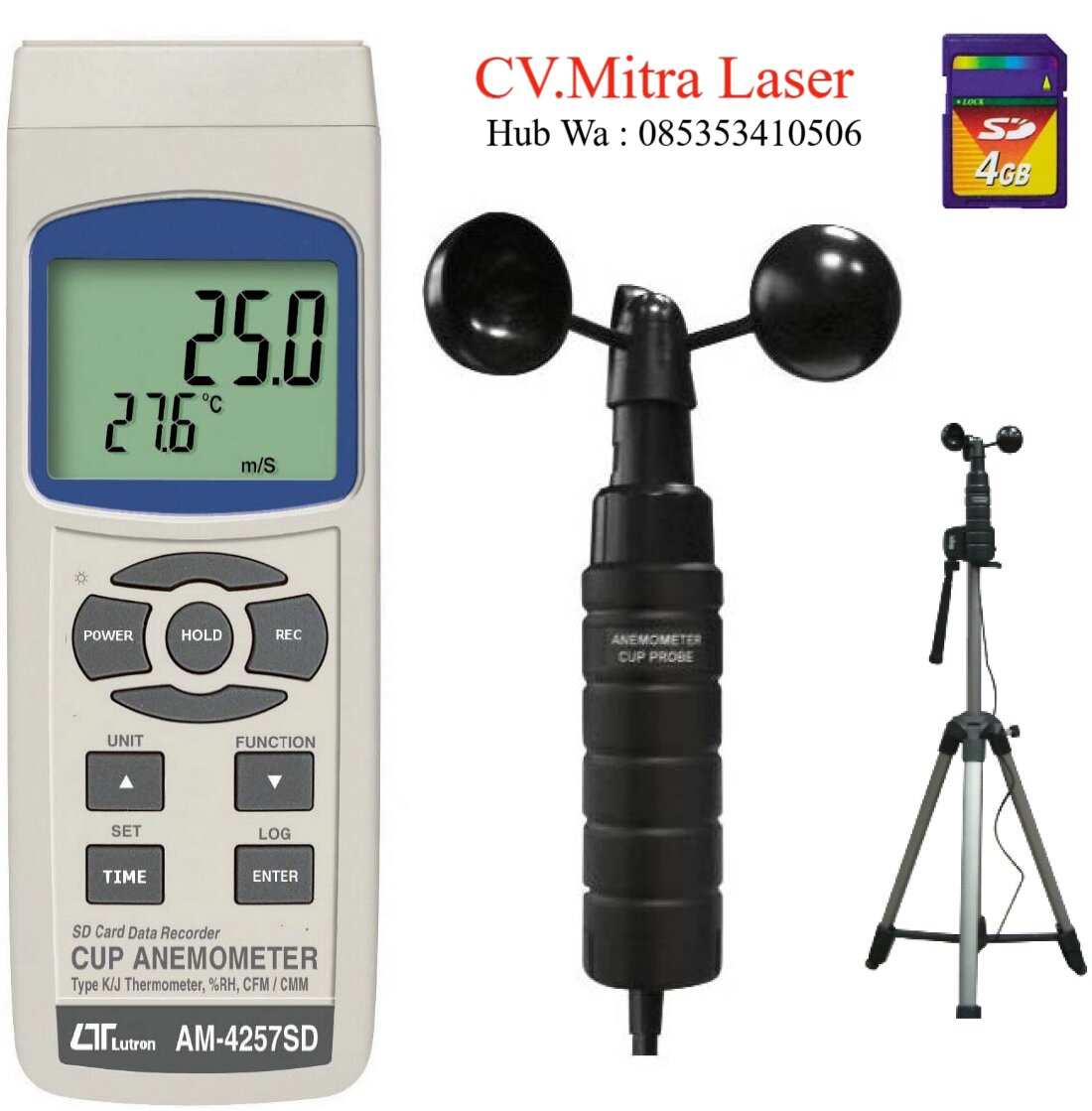

Lutron AM-4257SD Cup Anemometer Original
Jual Lutron AM-4257SD Cup Anemometer
* Cup anemometer, available for the outside air speed
measurement and recording.
* Cup probe is built in tripod fix nut.
* Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h,
* Air temperature ( '", ' )
* Type K, Type J thermocouple thermometer.
* Manual datalogger is available ( set the sampling
time to 0 ), during execute the manual datalogger
function, it can set the different position ( location ) No.
( position 1 to position 99 ).
* Innovation and easy operation, computer is not need
to setup extra software, after execute datalogger, just
take away the SD card from the meter and plug in the
SD card into the computer, it can down load the all the
measured value with the time information (
year/month/date/ hour/minute/second ) to the Excel
directly, then user can make the further data or graphic
analysis by themselves.
* SD card capacity : 1 GB to 16 GB.
Air velocity
Measurement Range Resolution Accuracy
m/S 0.9 - 35.0 m/S 0.1 m/S ( 2%+0.2 m/S)
Km/h 2.5 - 126.0 Km/h 0.1 Km/h ( 2%+0.8 Km/h)
Knot 1.4 - 68.0 Knots 0.1 mph ( 2%+0.4 Knots)
Ft/min 144 - 6895 Ft/min 0.1 Knots ( 2%+40 Ft/min)
Mile/h 1.6 - 78.2 Mile/h 1 FPM ( 2%+0.4 Mile/h)
Air temperature
Measuring Range 0 '" to 50 '"/32 ' to 122 '
Resolution 0.1 '"/0.1 ' Accuracy 0.8 '"/1.5 '
Sensor Resolution Range Accuracy
Type K 0.1 '" -50.0 to 1300.0 '" ( 0.4 % + 0.5 '" )
-50.1 to -100.0 '" ( 0.4 % + 1 '" ) 0.1 ' -58.0 to 2372.0 ' ( 0.4 % + 1 ' )
-58.1 to -148.0 ' ( 0.4 % + 1.8 ' ) Type J 0.1 '" -50.0 to 1200.0 '" ( 0.4 % + 0.5 '" )
-50.1 to -100.0 '" ( 0.4 % + 1 '" ) 0.1 ' -58.0 to 2192.0 ' ( 0.4 % + 1 ' )
-58.1 to -148.0 ' ( 0.4 % + 1.8 ' )
Accessories included ( termasuk dalam produk )
Instruction manual
Anemometer probe ( panjang kabel sensor 180 cm )
Hard Case CA-08
Battery AA (1.5V) 6 pc
Optional Accessories : ( Tidak termasuk )
SD Card ( Capacity 1-16 GB )
Type K thermocouple probe.
AC to DC 9V adapter.
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
