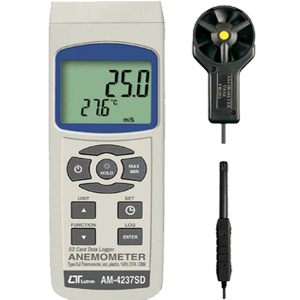

Lutron AM-4237SD Anemometer Humidity
Jual Lutron AM-4237SD Anemometer Humidity
* Two probes are included : Anemometer probe and Humidity/Temp. probe.
* Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h,
* Air temperature ( ℃, ℉ )
* Air flow : CMM, CFM.
* Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer.
* SD card capacity : 1 GB to 16 GB.
Air velocity
Measurement Range Resolution Accuracy
m/S 0.4 - 25.0 m/s 0.1 m/S ± ( 2%+0.2 m/S)
Km/h 1.4 - 90.0 km/h 0.1 Km/h ± ( 2%+0.8 Km/h)
mph ( Mile/h ) 0.9 - 55.9 mile/h 0.1 mph ± ( 2%+0.4 mph)
Knots 0.8 - 48.6 knots 0.1 Knots ± ( 2%+0.4 Knots)
FPM ( Ft/min ) 80 - 4930 ft/min 1 FPM ± ( 2%+40 FPM)
Air temperature
Measuring Range 0 ℃ to 80 ℃/32 ℉ to 176 ℉
Resolution 0.1 ℃/0.1 ℉ Accuracy 0.8 ℃/1.5 ℉ ( < 60 ℃ )
Air flow
Measurement Range Resolution
CMM ( m^3/min. ) 0 to 63,000 CMM 0.001 to 1 CMM
CFM ( ft^3/min. ) 0 to 2,224,900 CFM 0.001 to 100 CFM
Measurement Area
CMM ( m^3/min. ) 0.001 to 30.000 m^2
CFM ( ft^3/min. ) 0.01 to 322.93 ft^2
Humidity/ Temperature Range 5 % to 95 % R.H. Resolution 0.1 % R.H.
Accuracy ≧70% RH :
± (3% reading + 1% RH). < 70% RH : ± 3% RH.
Temperature Resolution 0.1 degree Accuracy ℃ ± 0.8 ℃.
Dew Point ( Humidity )
℃ Range -25.3 ℃ to 48.9 ℃ Resolution 0.1 ℃
℉ Range -13.5 ℉ to 120.1 ℉. Resolution 0.1 ℉.
Wet bulb ( Humidity )
℃ Range -21.6 ℃ to 50.0 ℃ Resolution 0.1 ℃
℉ Range -6.9 ℉ to 122.0 ℉. Resolution 0.1 ℉.
Type K/J thermometer
Type K 0.1 ℃ -50.0 to 1300.0 ℃ ± ( 0.4 % + 0.5 ℃ )
Accessories included ( Termasuk dalam alat )
Instruction manual
Anemometer probe
Humidity probe
Hard Case CA-06
Batere AA (1,5 Volt ) 6 pcs
Optional Accessories ( tidak termasuk )
SD Card
Type K thermocouple probe.
USB cable, USB-01.
Data Acquisition software,SW-U801-WIN.
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
