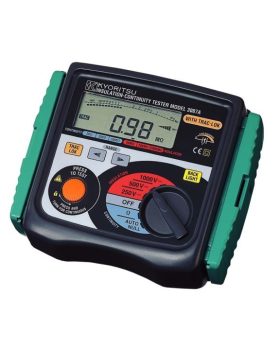

KYORITSU 3007A Digital Insulation / Continuity Tester Original
Jual KYORITSU 3007A Digital Insulation / Continuity Tester
• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Trac-Lok mode to conserve battery life on insulation and continuity tests.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• Backlight function to view the test results in dimly lit areas.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.
Insulation Resistance
Test voltage 250V/500V/1000V
Measuring ranges
(Mid-scale value) 20MΩ/200MΩ/2000MΩ
Output voltage on open circuit Rated test voltage+20%, -0%
Nominal current 1mA DC min.
Output short circuit current 1.5 mA DC approx.
Accuracy ±1.5%rdg±5dgt (20MΩ/200MΩ)
±10%rdg±3dgt (2000MΩ)
Continuity Test
Measuring ranges
(Mid-scale value) 20Ω/200Ω/2000Ω
Output voltage on open circuit 7 - 12V DC
Measuring current 200mA DC min.
Accuracy ±1.5%rdg±5dgt (20Ω)
±1.5%rdg±3dgt (200Ω/2000Ω)
AC Voltage
AC voltage range 0-600V AC
Accuracy ±5%rdg±3dgt
General
Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-031 IEC 61557-1/2/4
IP Rating IEC 60529-IP54
EMC Standard IEC 61326-1
Dimensions 167(L) × 185(W) × 89(D)mm
Included Accessories
7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) battery × 8
Shoulder Strap
Instruction Manual
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
