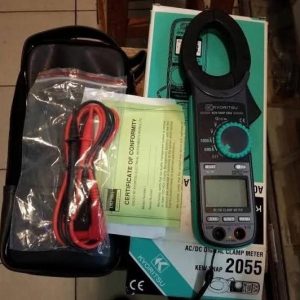

Kyoritsu 2055 Digital Clamp Meter 1000A AC DC Original

Jual Kyoritsu 2055 Digital Clamp Meter 1000A AC DC
• Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
• CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
• Very useful for power distribution companies, power utilities and maintenance fields.

AC A 0 - 600.0/1000A
±1.5%rdg±5dgt (50/60Hz)
±3.0%rdg±5dgt (40 - 400Hz)

DC A 0 - 600.0/1000A
±1.5%rdg±5dgt

AC V 6/60/600V
Auto Ranging
±1.3%rdg±4dgt (50/60Hz)
±3.0%rdg±5dgt (40 - 400Hz)

DC V 600m/6/60/600V
Auto Ranging
±1.0%rdg±3dgt

Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
±1%rdg±5dgt (600 - 6M) / ±5%rdg±8dgt (60M)

Continuity buzzer Buzzer Sounds at 100Ω

Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9%

Conductor size Ø40mm

Safety Standard IEC 61010-1 CAT IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326

Power source R03 (1.5V) (AAA) × 2
Dimensions 254(L) × 82(W) × 36(D)mm

Included Accessories
* 7066A (Test leads)
* 9094 (Carrying case)
* Instruction Manual
* Batere AAA = 2 pcs
