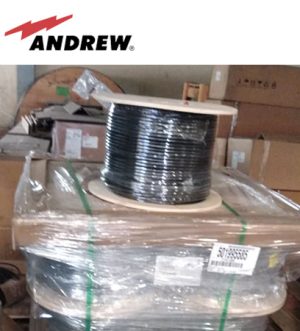

Kabel Andrew RG8 CNT-400 FR 50 Ohm Original
Kabel Andrew RG8 CNT-400 FR 50 Ohm Tangerang Harga Terbaik

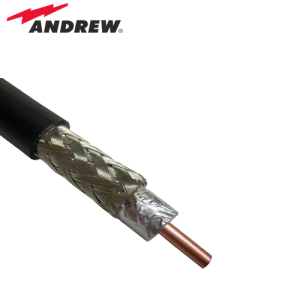

Kabel Andrew RG8 CNT-400 FR 50 Ohm Braided Coaxial Cable, black non-halogenated, fire retardant polyolefin jacket
Product Classification
Brand : CNT®
Product Type : Braided coaxial cable
Construction Materials
Jacket Color : Black
Jacket Material : Non-halogenated, fire retardant polyolefin
Braid Material : Tinned copper
Shield Tape Material : Aluminum
Dielectric Material : Foam PE
Inner Conductor Material : Copper-clad aluminum wire
Dimensions
Cable Weight : 0.07 kg/m
Diameter Over Dielectric : 7.240 mm | 0.285 in
Diameter Over Jacket : 10.290 mm | 0.405 in
Diameter Over Tape : 7.391 mm | 0.291 in
Inner Conductor OD : 2.7400 mm | 0.1080 in
Nominal Size : 0.400 in
Outer Conductor OD : 8.080 mm | 0.318 in
Electrical Specifications
Cable Impedance : 50 ohm
Capacitance : 78.0 pF/m | 24.0 pF/ft
dc Resistance, Inner Conductor : 4.490 ohms/km | 1.370 ohms/kft
dc Resistance, Outer Conductor : 5.610 ohms/km | 1.710 ohms/kft
dc Test Voltage : 2500 V
Jacket Spark Test Voltage (rms) : 4000 V
Maximum Frequency : 16.20 GHz
Operating Frequency Band : 30 – 6000 MHz
Peak Power : 16.0 kW
Shielding Effectiveness : >90 dB
Velocity : 85%
Environmental Specifications
Installation Temperature : -40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature : -40 °C to +60 °C (-40 °F to +140 °F)
Storage Temperature : -40 °C to +60 °C (-40 °F to +140 °F)
General Specifications
Cable Type : CNT-400
Braid Coverage : 90% braid
Brand : CNT®
Packaging Type : Reel
Mechanical Specifications
Bending Moment : 0.7 N-m | 0.5 ft lb
Fire Retardancy Test Method : UL VW1/CATVX
Flat Plate Crush Strength : 0.7 kg/mm | 40.0 lb/in
Minimum Bend Radius, Single Bend : 25.40 m | 1.00 in
Tensile Strength : 73 kg | 160 lb
Mohon Tanyakan Stok Terlebih Dahulu Sebelum Order.
